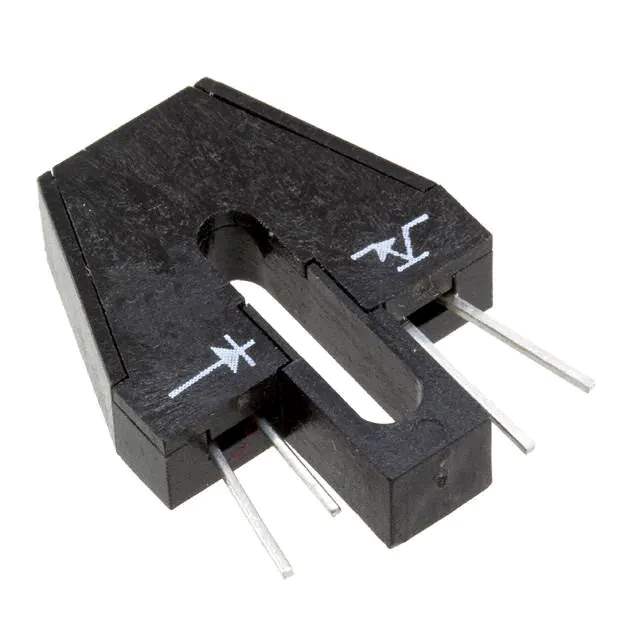

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Reflective - Analog Output
Mfr TT Electronics
Package Bulk
Product Status Active
Sensing Distance 0.150" (3.81mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 25 mA
Current - DC Forward (If) (Max) 40 mA
Output Type Phototransistor
Mounting Type Through Hole
Package / Case PCB Mount
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1331838-OPB703
Ultra Librarian 3D Model Ultra Librarian OPB703 CAD Model

Description

The 1331838-OPB703 is a reflective analog output optical sensor.

  • Output Type: Phototransistor
  • Collector-Emitter Breakdown Voltage (Max): 30V
  • Collector Current (Max): 25mA
  • Forward Current (Max): 40mA
  • Sensing Distance: 0.150 inches (3.81mm)
  • Package Type: PCB mount
  • ECCN: EAR99
  • MSL Level: 1
  • REACH Status: Unaffected
  • HTSUS: 8541.49.8000
  • Manufacturer: TT Electronics
