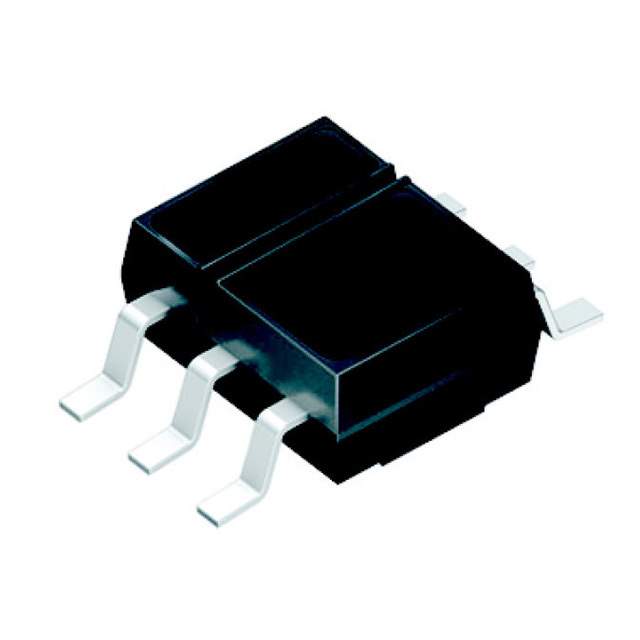

SFH 9206 Real Image
Same model may have multiple batches, images only for reference.

SFH 9206

Part No SFH 9206
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photoelectric, Industrial
Description REFLECTIVE INTERRUPTOR / Reflective Optical Sensor 0.039" ~ 0.197" (1mm ~ 5mm) 6-SOIC (0.126", 3.20mm Width)
Datasheet
SFH 9206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Reflective - Analog Output
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Sensing Distance 0.039" ~ 0.197" (1mm ~ 5mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 16 V
Current - Collector (Ic) (Max) 10 mA
Current - DC Forward (If) (Max) 50 mA
Output Type Phototransistor
Mounting SMD (SMT)
Package / Case 6-SOIC (0.126", 3.20mm Width)
Temperature Range - Operating -40°C ~ 100°C
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names 475-3531-1,Q65111A3179,SFH 9206-ND,475-3531-6,475-3531-2
Standard Package 1,000
Win Source Part Number 1092479-SFH 9206
Ultra Librarian 3D Model Ultra Librarian SFH 9206 CAD Model

Description

The SFH 9206 reflective analog output optical sensor from OSRAM Opto Semiconductors Inc. is an excellent choice for a variety of sensing applications.

  • Sensor: SFH 9206
  • Type: reflective analog output optical sensor
  • Manufacturer: OSRAM Opto Semiconductors Inc.
  • Output Type: phototransistor
  • Maximum Voltage Collector Emitter Breakdown: 16V
  • Package: 6-SOIC
  • Sensing Distance: 0.039 inches to 0.197 inches
  • Package: tape and reel
  • Standard Package: 1,000 units
  • Width: 0.126 inches
  • Operating Temperature Range: -40 degrees Celsius to 100 degrees Celsius
  • Maximum Current Collector: 10mA
  • DC Forward Current: 50mA
  • Benefit: reliable sensing is required.
