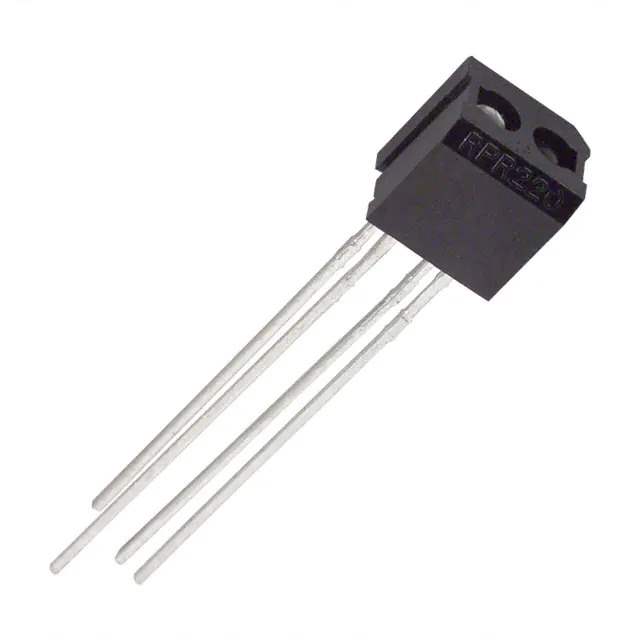

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Reflective - Analog Output
Mfr Rohm Semiconductor
Package Bulk
Product Status Active
Sensing Distance 0.236" (6mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 30 mA
Current - DC Forward (If) (Max) 30 mA
Output Type Phototransistor
Response Time 10µs
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Temperature Range - Operating -25°C ~ 85°C
Base Product Number RPR-220
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 298635-RPR-220
Ultra Librarian 3D Model Ultra Librarian RPR-220 CAD Model

Description

The RPR-220 is an optical sensor with a reflective sensing method.

  • Response Time: 10µs
  • Voltage Collector Emitter Breakdown: 30V
  • Maximum Collector Current: 30mA
  • Sensing Distance: 6mm
  • Mounting: through-hole
  • Package: radial package with 4 leads
  • Temperature Range: -25°C to 85°C
  • Manufacturer: Rohm Semiconductor
