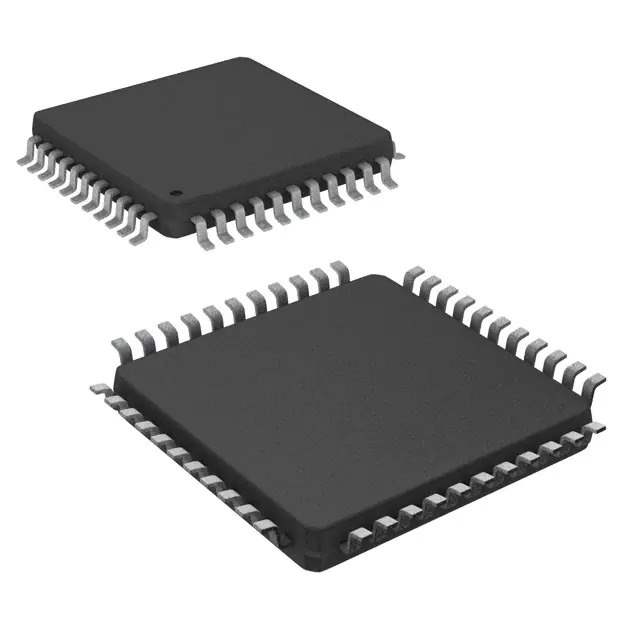

TMC236B-PA Real Image TMC236B-PA Real Image
Same model may have multiple batches, images only for reference.
TMC236B-PA Real Image TMC236B-PA Real Image
TMC236B-PA Real Image TMC236B-PA Real Image
Same model may have multiple batches, images only for reference.

TMC236B-PA

Part No TMC236B-PA
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRVR BIPOLAR 3-5.5V 44QFP / Bipolar Motor Driver HVCMOS SPI 44-PQFP (10x10)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH
Package Tray
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI
Technology HVCMOS
Step Resolution 1, 1/2, 1/4, 1/8, 1/16
Applications General Purpose
Current - Output 1.5A
Voltage - Supply 3V ~ 5.5V
Voltage - Load 7V ~ 34V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 44-LQFP
Supplier Device Package 44-PQFP (10x10)
Base Product Number TMC236
Standard Package 160
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1340345-TMC236B-PA
Ultra Librarian 3D Model Ultra Librarian TMC236B-PA CAD Model

Description

The 1340345-TMC236B-PA from Trinamic Motion Control GmbH is an integrated circuit that features a power management motor driver and controller. Bold the product name (e.g., BAV99S,135 → 1340345-TMC236B-PA) and manufacturer (e.g., Nexperia USA Inc. → Trinamic Motion Control GmbH).

  • Package: 44-LQFP
  • Standard Package: 160
  • Technology: HVCMOS
  • Current Output: 1.5A
  • Function: Driver - Fully Integrated Control and Power Stage
  • Interface: SPI
  • Output Configuration: Half-Bridge (4)
  • Voltage Load: 7V to 34V
  • Motor Type: Bipolar
  • Step Resolution: 1, 1/2, 1/4, 1/8, 1/16
  • Voltage Supply: 3V to 5.5V
  • Mounting Type: Surface Mount
  • Supplier Device Package: 44-PQFP (10x10)
  • Operating Temperature: -40°C to 150°C (TJ)
