Same model may have multiple batches, images only for reference.

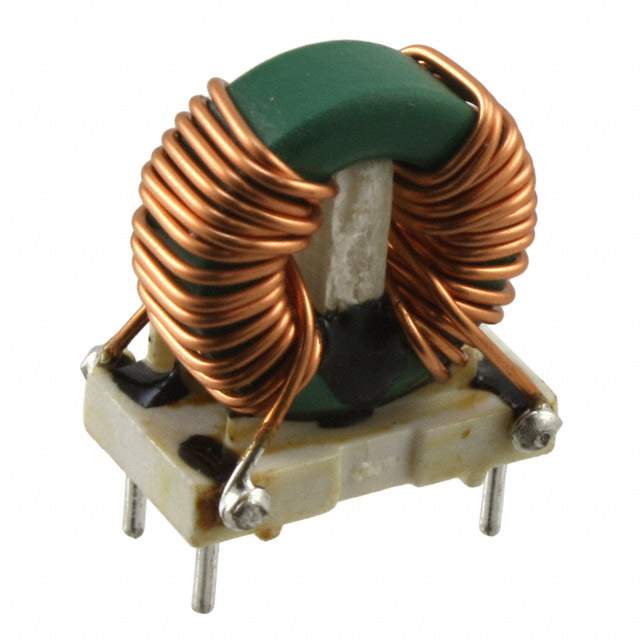

CMT-8103 Real Image
Same model may have multiple batches, images only for reference.

CMT-8103

Part No CMT-8103
Manufacturer Triad Magnetics
Catalog Common Mode Chokes
Description CMC 1MH 4.8A 2LN TH ESD / 1 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 4.8A DCR 22mOhm
Datasheet
CMT-8103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Triad Magnetics
Series CMT
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 1 kHz
Current Rating (Max) 4.8A
DC Resistance (DCR) (Max) 22mOhm
Voltage Rating - AC 1500V (1.5kV)
Temperature Range - Operating -55°C ~ 105°C
Approval Agency CSA, IEC, UL, VDE
Features ESD
Mounting Type Through Hole
Dimension 0.760" L x 0.615" W (19.30mm x 15.62mm)
Height (Max) 0.900" (22.86mm)
Package / Case Vertical, 4 PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names CMT8103,237-1369
Standard Package 1
Win Source Part Number 965449-CMT-8103
Ultra Librarian 3D Model Ultra Librarian CMT-8103 CAD Model

Description

The Triad Magnetics CMT8103 is a common mode choke filter manufactured by Triad Magnetics.

  • Voltage Rating: 1500V (1.5kV)
  • Current Rating: 4.8A
  • Type: power line filter
  • Mounting: through hole
  • Popularity: low popularity
  • Package: bulk package
  • Win Source Part Number: 965449-CMT-8103
