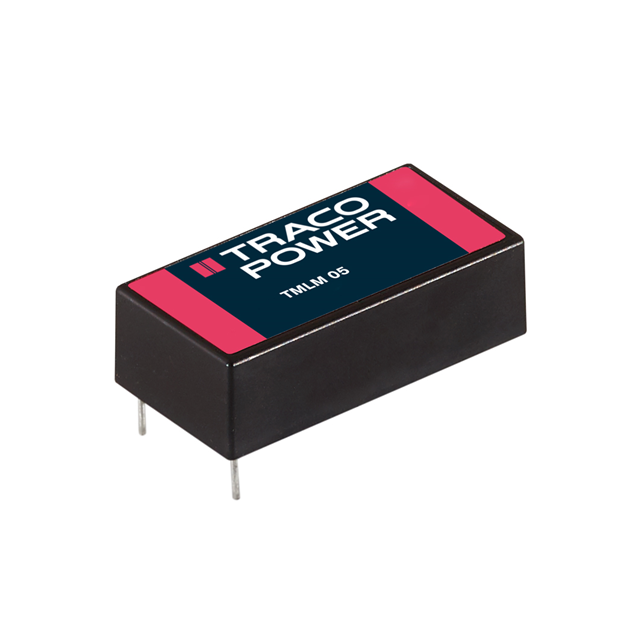

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer Traco Power
Packaging Box
Product Status Obsolete
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 15V
Current - Output (Max) 333mA
Power (Watts) 5 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 60°C (With Derating)
Efficiency 75%
Mounting Through Hole
Case / Package 4-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm)
Approval Agency CE, cURus
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Part Number TMLM 05115-ND,TMLM05115
Standard Package 10
Win Source Part Number 1336120-TMLM 05115
Ultra Librarian 3D Model Ultra Librarian TMLM 05115 CAD Model

Description

The Traco Power 1336120-TMLM 05115 is a 5W enclosed AC/DC converter with universal input features.

  • Size: 2.00" L x 1.00" W x 0.60" H (50.8mm x 25.4mm x 15.2mm)
  • Application: ITE (Commercial) applications
  • Mounting: Through-hole
  • Outputs: One
  • Maximum Output Current: 333mA
  • Output Voltage: 15V
  • Efficiency: 75%
  • Temperature Range: -25°C ~ 60°C (With Derating)
  • Approvals: CE and cURus approved
  • Compliance: ROHS3 compliant
  • Case/Package: 4-DIP module
  • Status: Obsolete
