Same model may have multiple batches, images only for reference.

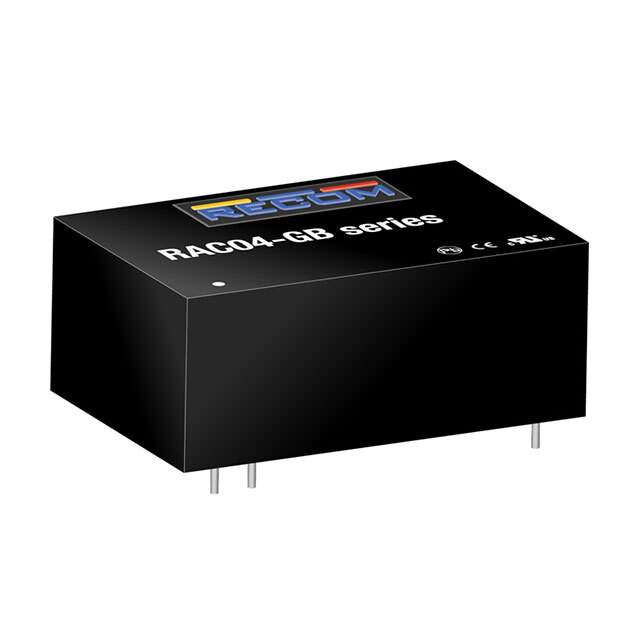

RAC04-15SGB Real Image
Same model may have multiple batches, images only for reference.

RAC04-15SGB

Part No RAC04-15SGB
Manufacturer Recom Power
Catalog PMIC - Voltage Regulators - Linear + Switching
Description AC/DC CONVERTER 15V 4W  /  Enclosed AC DC Converters 1 Output 15V 270mA 85 ~ 305 VAC Input
Datasheet
RAC04-15SGB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr Recom Power
Series POWERLINE RAC04-GB (4W)
Package Tube
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 305 VAC
Voltage - Output 1 15V
Current - Output (Max) 270mA
Power (Watts) 4 W
Applications Household Appliances, ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 16-DIP Module, 5 Leads
Dimension 1.46" L x 0.94" W x 0.59" H (37.0mm x 24.0mm x 15.0mm)
Approval Agency CE, cURus
Line Regulation ±0.5%
Load Regulation ±0.5%
Weight 0.044 lb (19.96 g)
Base Product Number RAC04-15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 20001083,945-3097-5
Standard Package 20
Win Source Part Number 1201784-RAC04-15SGB
Ultra Librarian 3D Model Ultra Librarian RAC04-15SGB CAD Model

Description

The POWERLINE RAC04-GB (4W) is an enclosed AC-DC converter designed for use in household appliances and ITE (Commercial) applications.

  • Manufacturer: POWERLINE
  • Product Name: RAC04-GB (4W)
  • Application: Household Appliances and ITE (Commercial)
  • Type: Enclosed AC-DC Converter
  • Power Output: 4W
  • Output: Single
  • Maximum Current: 270mA
  • Input Voltage: 85V to 305VAC
  • Output Voltage: 15V
  • Efficiency: 78%
  • Mounting Type: Through Hole
  • Package Dimensions: 1.46" L x 0.94" W x 0.59" H (37.0mm x 24.0mm x 15.0mm)
  • Package Type: 16-DIP Module
  • Number of Leads: 5
  • Alternative Parts: RAC04-15SGB
  • Approvals: CE and cURus
