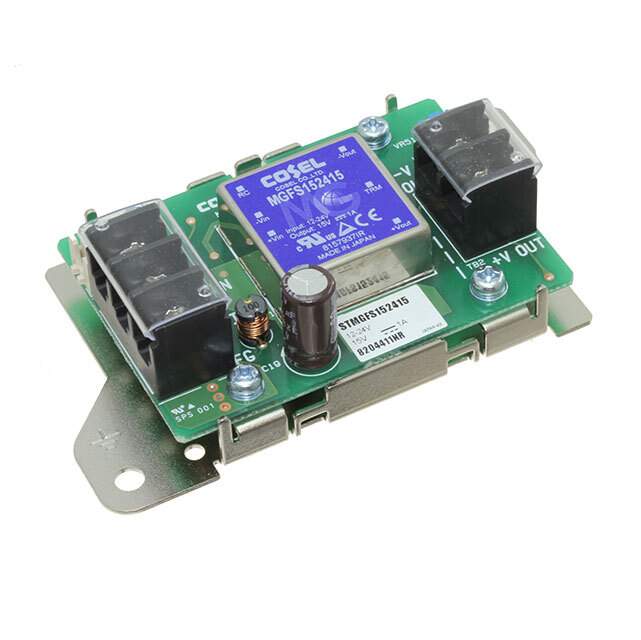

STMGFS152412-N2 Real Image
Same model may have multiple batches, images only for reference.

STMGFS152412-N2

Part No STMGFS152412-N2
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 12V 16W / Open Frame DC DC Converter 1 Output 12V 1.3A 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - DC DC Converters
Mfr Cosel USA, Inc.
Series STMGFS (15W)
Package Box
Type Open Frame
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Number of Outputs 1
Voltage - Output 1 12V
Current - Output (Max) 1.3A
Power (Watts) 16W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Efficiency 89%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Mounting Type Chassis Mount
Size / Dimension 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm)
Approval Agency CE
Base Product Number STMGFS152412
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1351553-STMGFS152412-N2
Ultra Librarian 3D Model Ultra Librarian STMGFS152412-N2 CAD Model

Description

The STMGFS152412-N2 is a 15W open frame DC-DC converter from Cosel USA, Inc.

  • Series: STMGFS
  • Application: ITE (Commercial)
  • Outputs: 1
  • Output Voltage: 12V
  • Output Current: 1.3A (Max)
  • Efficiency: 89%
  • Operating Temperature: -20°C to 70°C (with derating)
  • Mounting Type: Chassis Mount
  • Size: 3.66" L x 2.05" W x 1.06" H (93.0mm x 52.1mm x 26.9mm)
  • Voltage Isolation: 1.5 kV
  • Input Voltage: 9V to 36V
  • Approvals: CE
  • ECCN: EAR99
