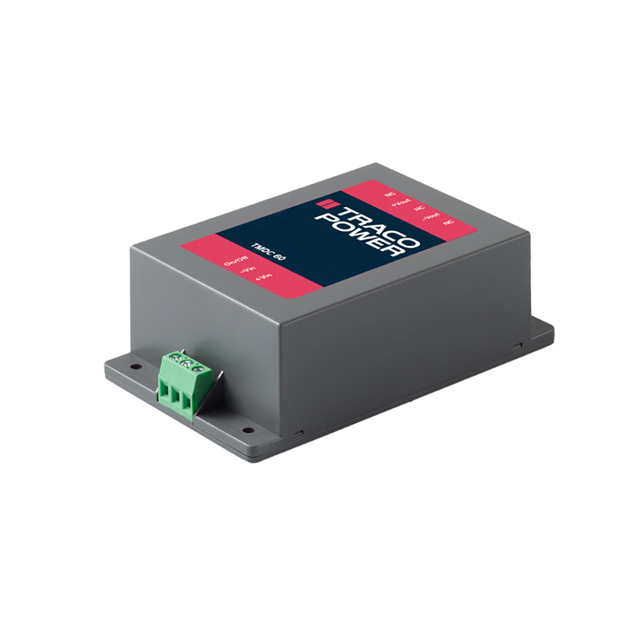

TMDC 60-4811 Real Image
Same model may have multiple batches, images only for reference.

TMDC 60-4811

Part No TMDC 60-4811
Manufacturer Traco Power
Catalog External/Internal (Off - Board) DC DC Converters
Description DC/DC CONVERTER 5.1V 61W / Enclosed DC DC Converter 1 Output 5.1V 12A 75V Input
Datasheet
TMDC 60-4811 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Number of Outputs 1
Voltage - Output 1 5.1V
Current - Output (Max) 12A
Power (Watts) 61W
Voltage - Isolation 2.5 kV
Applications ITE (Commercial)
Efficiency 91%
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Mounting Chassis Mount
Size / Dimension 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.1mm)
Approval Agency CB, CE, cURus
Base Product Number TMDC 60
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMDC60-4811,TMDC 60-4811-ND
Standard Package 10
Win Source Part Number 1336071-TMDC 60-4811
Ultra Librarian 3D Model Ultra Librarian TMDC 60-4811 CAD Model

Description

The Traco Power TMDC 60-4811 is an enclosed DC-DC converter designed for ITE applications.

  • Power Rating: 61W
  • Mounting Type: Chassis Mounted
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 5.1V
  • Output Current: 12A
  • Voltage Isolation: 2.5 kV
  • Efficiency: 91%
  • Package Size: 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.1mm)
  • Packaging: Box
  • Approval Agency: CB, CE, and cURus
  • ROHS Compliance: ROHS3 compliant
  • Operating Temperature: -40°C to 85°C with derating
