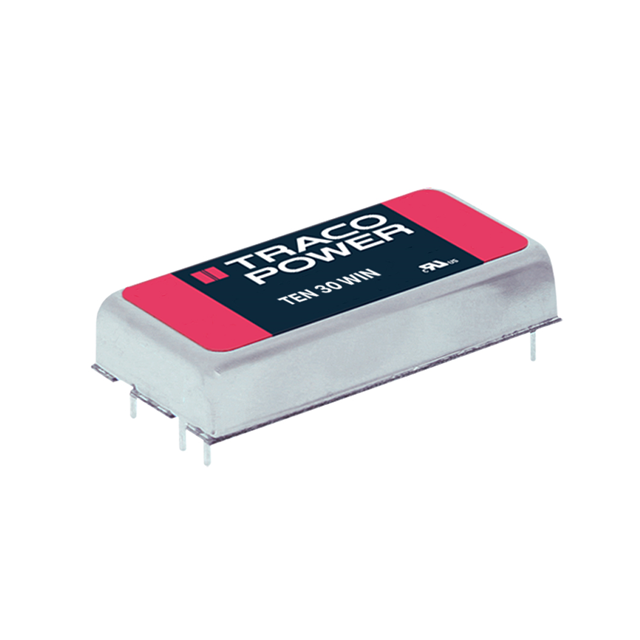

TEN 30-2433WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 30-2433WIN

Part No TEN 30-2433WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V +/-12V / Isolated Module DC DC Converter 3 Output 3.3V 12V -12V 5A, 416mA, 416mA 9V - 36V Input
Datasheet
TEN 30-2433WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 3
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Voltage - Output 2 12V
Voltage - Output 3 -12V
Current - Output (Max) 5A, 416mA, 416mA
Power (Watts) 26 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 86%
Mounting Through Hole
Case / Package 7-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 30-2433WIN-ND,TEN30-2433WIN
Standard Package 10
Win Source Part Number 1335678-TEN 30-2433WIN
Ultra Librarian 3D Model Ultra Librarian TEN 30-2433WIN CAD Model

Description

The Traco Power TEN 30-2433WIN is a high-performance isolated module designed for use in ITE (Commercial) applications.

  • Power Output: 26 W
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: three
  • Maximum Output Current: 5A, 416mA, and 416mA, respectively
  • Voltage Input Range: from 9V to 36V
  • Voltage Output Range: from 3.3V to -12V
  • Features: remote On/Off, OCP, OTP, OVP, and SCP
  • Efficiency: 86%
  • Temperature Range: -40°C to 75°C
  • Datasheet: please refer to the manufacturer's datasheet
