Same model may have multiple batches, images only for reference.

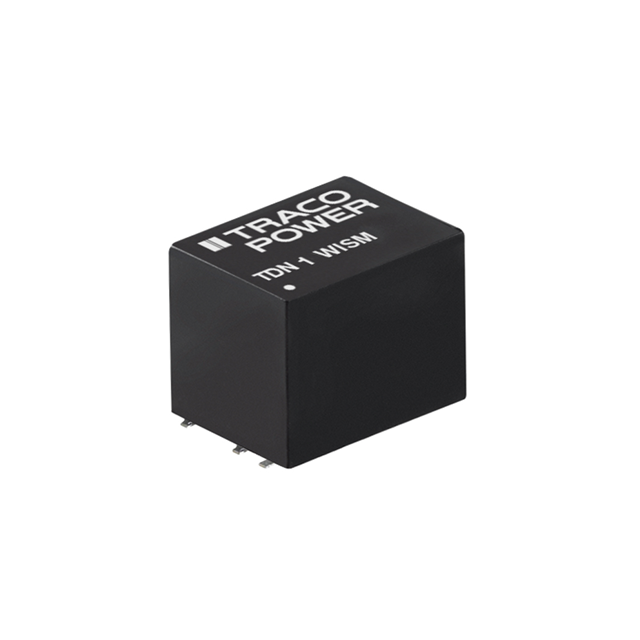

TDN 1-2421WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 1-2421WISM

Part No TDN 1-2421WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 9V - 36V Input
Datasheet
TDN 1-2421WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 77%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1883
Standard Package 10
Win Source Part Number 1335398-TDN 1-2421WISM
Ultra Librarian 3D Model Ultra Librarian TDN 1-2421WISM CAD Model

Description

The electronic component with Id 1148838 is a power supply board mount DC DC converter module manufactured by Traco Power.

  • Remote On/Off: Yes
  • SCP: Yes
  • Isolation: Yes
  • Size / Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
  • Standard Package: 10
  • Mounting Type: Surface Mount
  • Power (Watts): 1 W
  • Voltage - Isolation: 1.6 kV
  • Number of Outputs: 2
  • Current - Output (Max): 100mA, 100mA
  • Voltage - Input: 9V to 36V
  • Voltage - Output 1: 5V
  • Voltage - Output 2: -5V
  • Efficiency: 77%
  • Temperature Range - Operating: -40°C to 90°C
  • ROHS3 Compliant: Yes
