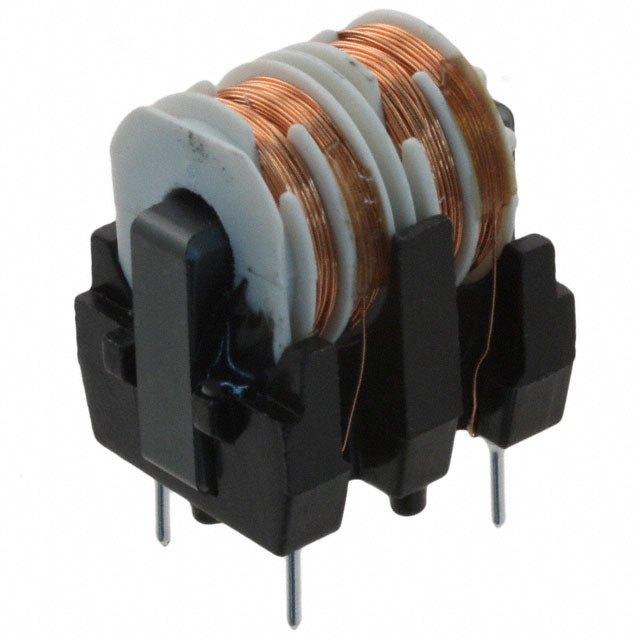

Same model may have multiple batches, images only for reference.
TCK-092 Traco Power – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TCK-092

Part No TCK-092
Manufacturer Traco Power
Catalog Common Mode Chokes
Description CMC 45UH 2LN TH
Datasheet
TCK-092 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 45 µH @ 100 kHz
DC Resistance (DCR) (Max) 1.4mOhm
Voltage Rating - DC 500V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max) 0.492" (12.50mm)
Case / Package Horizontal, 4 PC Pin
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1530681-TCK-092
Ultra Librarian 3D Model Ultra Librarian TCK-092 CAD Model
