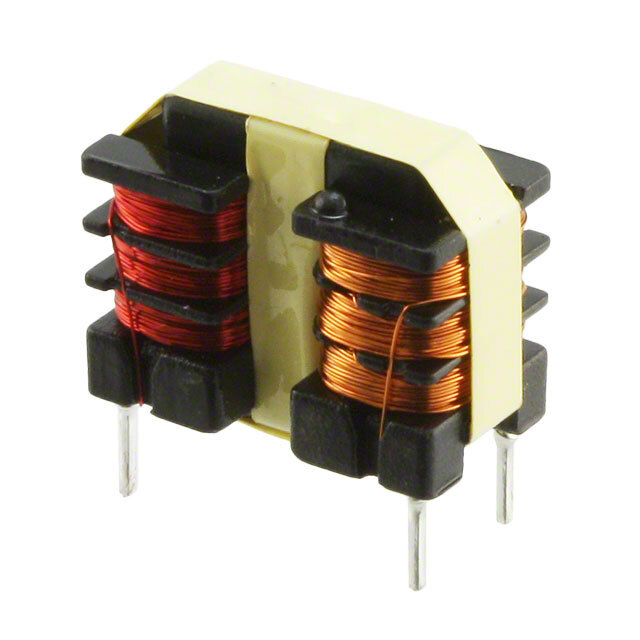

744822120 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

744822120

Part No 744822120
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 20MH 500MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 mH @ 10 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 540mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.689" L x 0.512" W (17.50mm x 13.00mm)
Height (Max) 0.866" (22.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1507323-744822120
Ultra Librarian 3D Model Ultra Librarian 744822120 CAD Model
