Same model may have multiple batches, images only for reference.

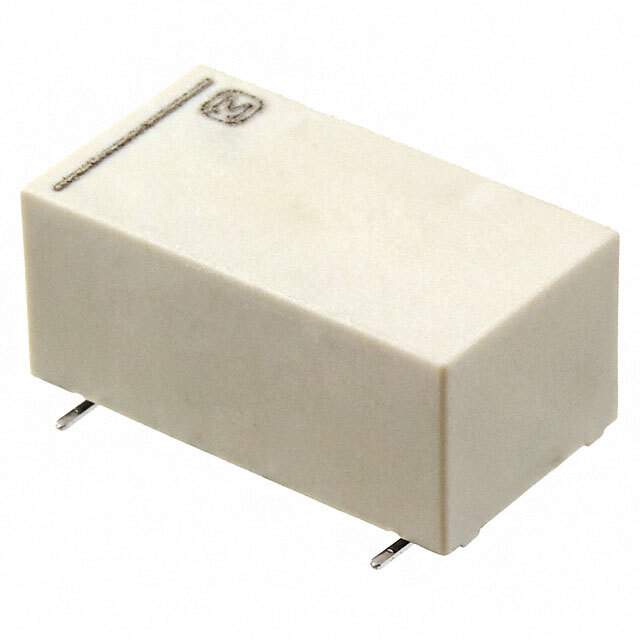

ARE10A4HZ Real Image
Same model may have multiple batches, images only for reference.

ARE10A4HZ

Part No ARE10A4HZ
Manufacturer Panasonic
Catalog High Frequency (RF) Relays
Description RELAY RF SPDT 500MA 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>High Frequency (RF) Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Product Status Obsolete
Coil Type Non Latching
Coil Current 44.4 mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 3.38 VDC
Must Release Voltage 0.45 VDC
Operate Time 10 ms
Release Time 5 ms
Mounting Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 101 Ohms
Base Product Number ARE10A
RoHS Status RoHS Compliant
MSL Level 5A (24 Hours)
ECCN EAR99
HTSUS 8536.41.0020
Other Part Number ARE10A4HZ-ND,255-5312-6,-ARE10A4HZ-ND,255-5312-1,255-5312-2
Standard Package 400
Win Source Part Number 1323858-ARE10A4HZ
Ultra Librarian 3D Model Ultra Librarian ARE10A4HZ CAD Model

Description

The ARE10A4HZ is a high-frequency (RF) relay manufactured by Panasonic Electric Works.

  • Mounting Type: surface-mount
  • Termination Style: gull-wing
  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 101 Ohms
  • Contact Rating: 500 mA
  • Switching Voltage: 30VDC - Max
  • Product Status: obsolete
  • RoHS compliant: true
