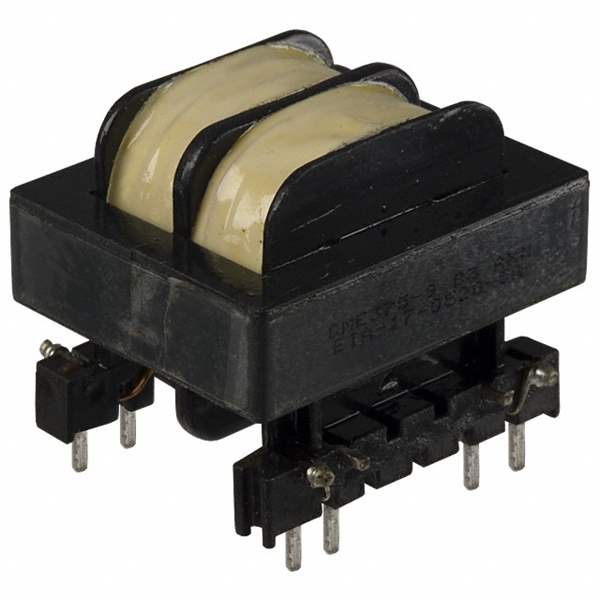

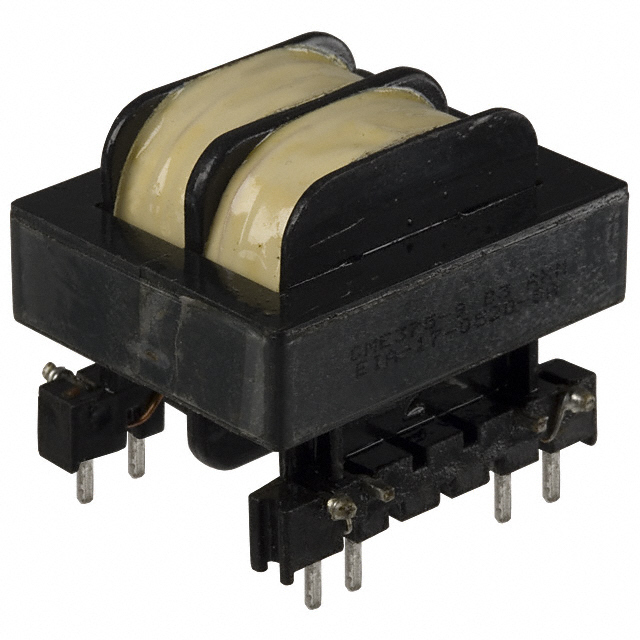

CMT-8120 Triad Magnetics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CMT-8120

Part No CMT-8120
Manufacturer Triad Magnetics
Catalog Common Mode Chokes
Description CMC 2.4MH 17A 2LN THROUGH HOLE
Datasheet
CMT-8120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.4 mH @ 1 kHz
Current Rating (Max) 17A
DC Resistance (DCR) (Max) 8mOhm
Voltage Rating - AC 1500V (1.5kV)
Temperature Range - Operating -55°C ~ 105°C
Approval Agency CSA, IEC, UL, VDE
Mounting Type Through Hole
Size / Dimension 1.700" L x 0.900" W (43.18mm x 22.86mm)
Height (Max) 1.650" (41.91mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530487-CMT-8120
Ultra Librarian 3D Model Ultra Librarian CMT-8120 CAD Model
