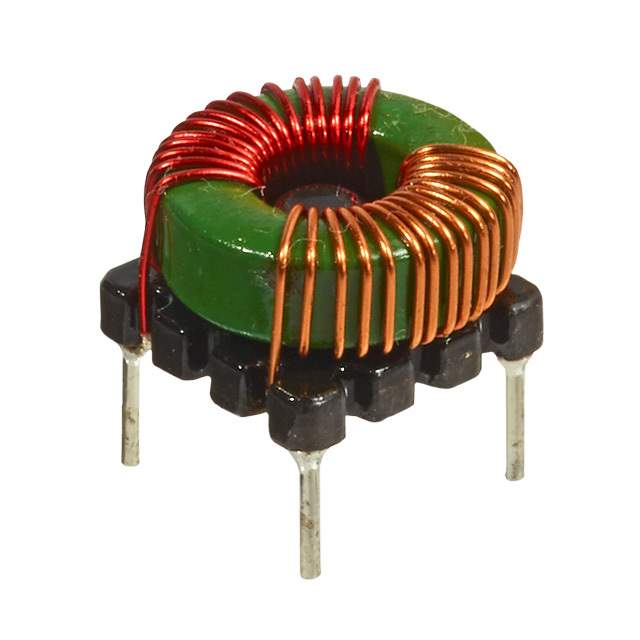

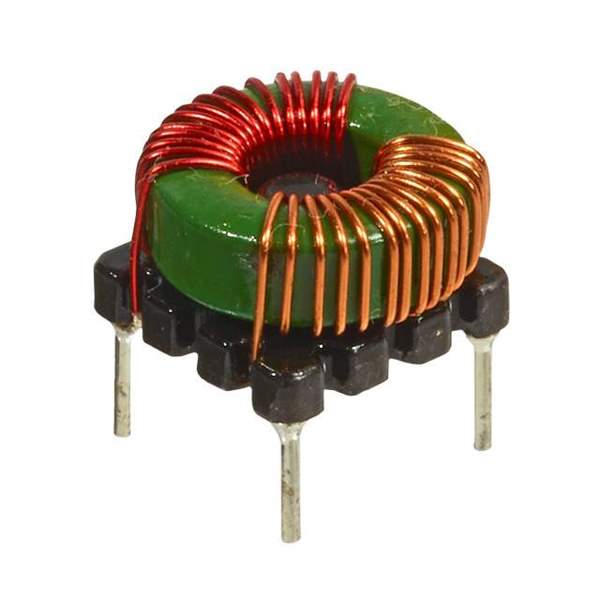

TCK-050 Real Image
Same model may have multiple batches, images only for reference.

TCK-050

Part No TCK-050
Manufacturer Traco Power
Catalog Common Mode Chokes
Description CMC 325UH 3.3A 2LN TH / 325 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 3.3A DCR 35mOhm
Datasheet
TCK-050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Traco Power
Package Bag
Number of Lines 2
Inductance @ Frequency 325 µH @ 100 kHz
Current Rating (Max) 3.3A
DC Resistance (DCR) (Max) 35mOhm
Voltage Rating - DC 500V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 0.433" L x 0.433" W (11.00mm x 11.00mm)
Height (Max) 0.346" (8.80mm)
Package / Case Horizontal, 4 PC Pin
Standard Package 27
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
California Prop 65 Warning Information
Win Source Part Number 1338768-TCK-050
Ultra Librarian 3D Model Ultra Librarian TCK-050 CAD Model

Description

This is a common mode choke that belongs to the category of filters. The part number of this product is 1338768-TCK-050.

  • Category: Filters
  • Voltage Rating: 500V (DC)
  • Current Rating: 3.3A (max)
  • Size/Dimension: 0.433 inches (Length), 0.433 inches (Width)
  • Mounting Type: Through-Hole
  • Package/Case: Horizontal, 4 PC Pin
  • Number of Lines: 2
  • Inductance: 325 microhenrys @ 100 kHz
  • Height: 0.346 inches (8.80mm)
  • Operating Temperature: -40°C to 105°C
  • Manufacturer: Traco Power
  • ECCN: EAR99
  • DC Resistance: 35 milliohms (max)
