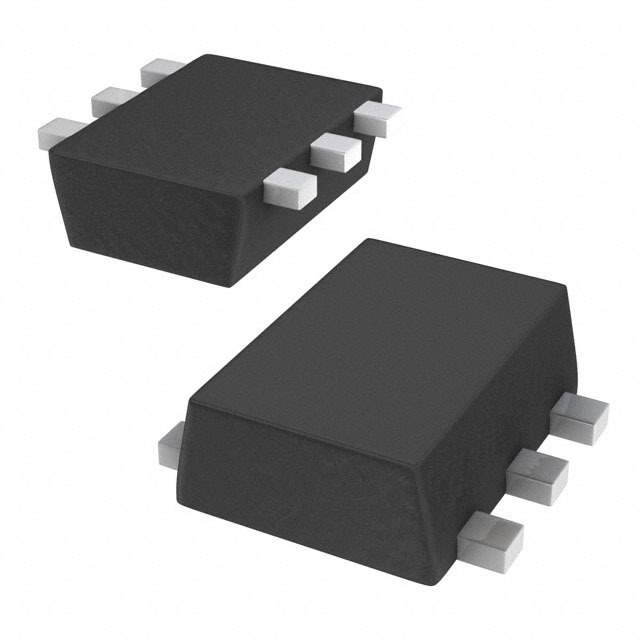

The TC7SP3125TU is a single-channel bus switch from Toshiba Semiconductor and Storage. It is designed for low-voltage applications where signal isolation or bus multiplexing is required. It is characterized by low on-resistance and high-speed switching.

Applications:

• Bus Isolation: Used to isolate different buses to prevent interference or signal degradation.
• Bus Multiplexing: Employed for multiplexing different buses to share a common resource.
• Level Shifting: Suitable for level shifting between different voltage domains.
• Data Routing: Used in data routing applications where signals need to be switched between different paths.

Features:

• Single Channel: Offers a single switching channel.
• Low On-Resistance: Features low on-resistance for minimal signal attenuation.
• High-Speed Switching: Provides high-speed switching for fast data transfer.
• Low Voltage Operation: Designed for low-voltage applications.
• Small Package: Available in a small package for space-constrained applications.

Benefits:

• Improved Signal Integrity: Low on-resistance minimizes signal attenuation and improves signal integrity.
• Faster Data Transfer: High-speed switching enables faster data transfer rates.
• Reduced Power Consumption: Low voltage operation reduces power consumption.
• Compact Design: Small package allows for integration into space-constrained applications.

Technical Specifications:

The TC7SP3125TU typically features an operating voltage range of 1.65V to 5.5V, a typical on-resistance of a few ohms (depending on the supply voltage), and a propagation delay in the nanosecond range. Detailed specifications are available in the manufacturer's datasheet.
