Same model may have multiple batches, images only for reference.

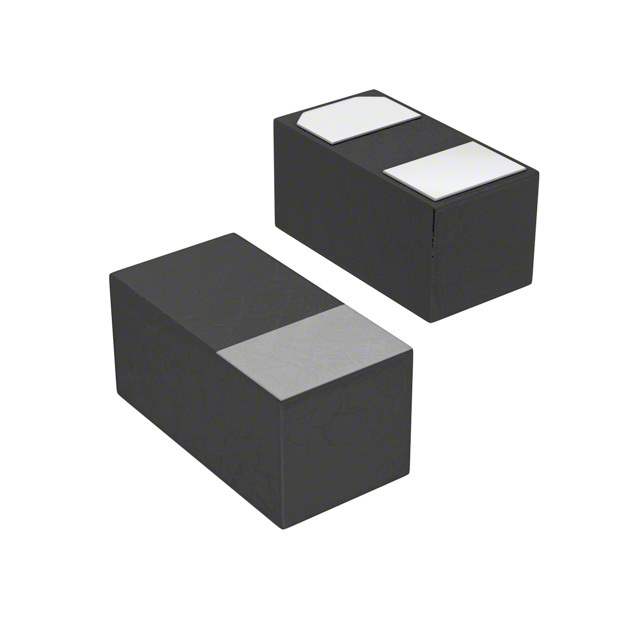

JDP2S08SC Real Image
Same model may have multiple batches, images only for reference.

JDP2S08SC

Part No JDP2S08SC
Manufacturer Toshiba Semiconductor and Storage
Catalog RF Diodes
Description DIODE PIN 30V 50MA SC2
Datasheet
JDP2S08SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 30V
Current - Max 50mA
Capacitance @ Vr, F 0.4pF @ 1V, 1MHz
Resistance @ If, F 1.5 Ohm @ 10mA, 100MHz
Temperature Range - Operating 150°C (TJ)
Case / Package SC2
Win Source Part Number 286540-JDP2S08SC
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian JDP2S08SC CAD Model

Description

The Toshiba Semiconductor and Storage 286540-JDP2S08SC is a PIN diode that is designed to operate at a maximum current of 50mA.

  • Maximum Current: 50mA
  • Capacitance: 0.4pF @ 1V and 1MHz
  • Peak Reverse Voltage: 30V
  • Resistance: 1.5 Ohm @ 10mA and 100MHz
  • Package: SC2
  • Temperature Range: up to 150°C
  • Popularity: medium
  • Supply and demand status: sufficient
  • Part of the discrete semiconductor products category.
