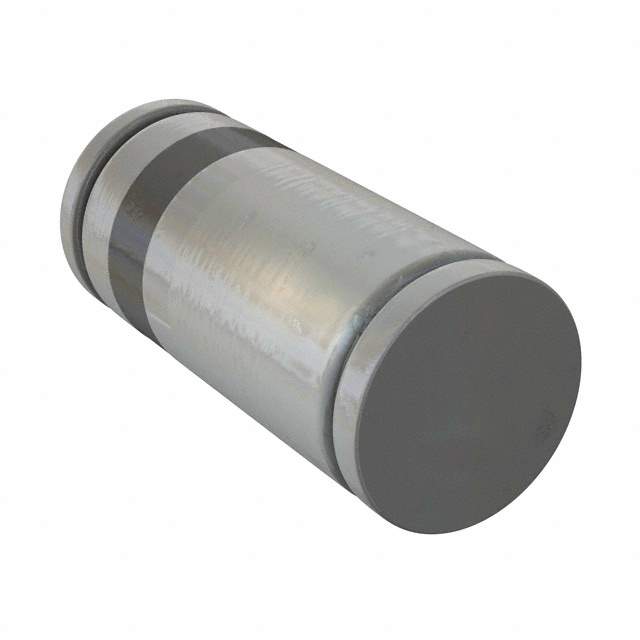

BA683-GS18 Real Image
Same model may have multiple batches, images only for reference.

BA683-GS18

Part No BA683-GS18
Manufacturer Vishay
Catalog RF Diodes
Description DIODE BAND SW SOD80 MINIMELF
Datasheet
BA683-GS18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 35V
Current - Max 100mA
Capacitance @ Vr, F 1.2pF @ 3V, 100MHz
Resistance @ If, F 900 mOhm @ 10mA, 200MHz
Temperature Range - Operating 150°C (TJ)
Case / Package SOD-80 MiniMELF
Win Source Part Number 1021982-BA683-GS18
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BA683-GS18 CAD Model

Description

The Vishay 1021982-BA683-GS18 is an obsolete (EOL) PIN diode with a maximum peak reverse voltage of 35V and a maximum current of 100mA.

  • Capacitance: 1.2pF @ 3V, 100MHz
  • Resistance: 900 mOhm @ 10mA, 200MHz
  • Operating Temperature: 150°C (TJ)
  • Category: discrete semiconductor products
