The ULN2003AIN is a high-voltage, high-current Darlington transistor array designed by Texas Instruments. This integrated circuit is comprised of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA, making it suitable for interfacing with relays, motors, and other high-current or high-voltage loads.

Key Features

• High-Voltage Outputs: 50 V Output Rating allows the ULN2003AIN to handle a variety of high-voltage applications.
• High-Current Handling: With a 500 mA collector current rating per Darlington pair, it can drive a wide range of loads.
• Integrated Suppression Diodes: Diodes are included for back EMF suppression when driving inductive loads, which is essential for protecting the circuit from voltage spikes.
• Input Compatibility: The device can be directly connected to TTL and 5V CMOS devices, as well as other logic families.

Applications

The ULN2003AIN is commonly used in a variety of applications that require high-current and/or high-voltage switching capabilities. It is ideal for interfacing with peripheral devices in computer and microcontroller-based systems. Typical applications include:

• Relay Drivers
• Stepper Motor Drivers
• LED Displays / LED Matrix Drivers
• Logic Buffers
• Lamp Drivers

Package and Quality

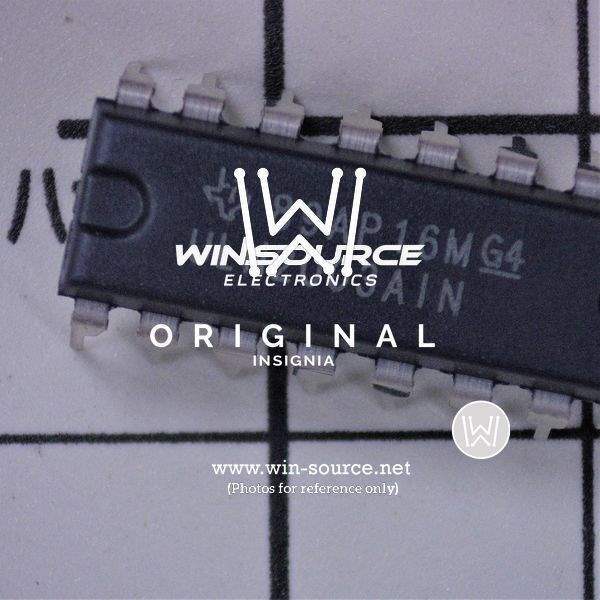

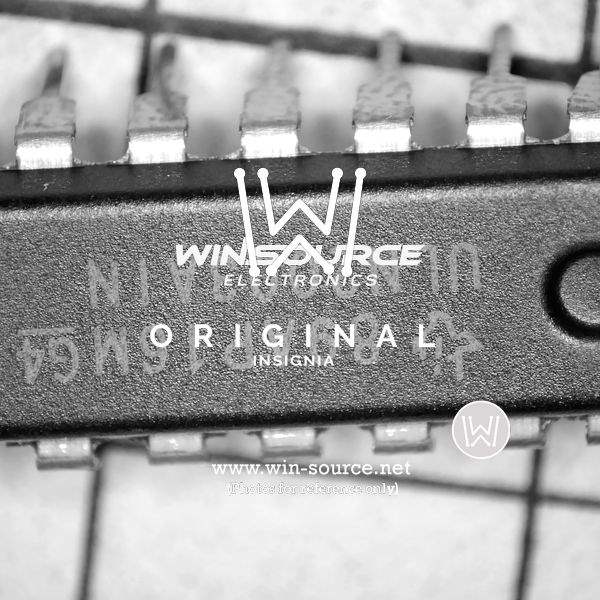

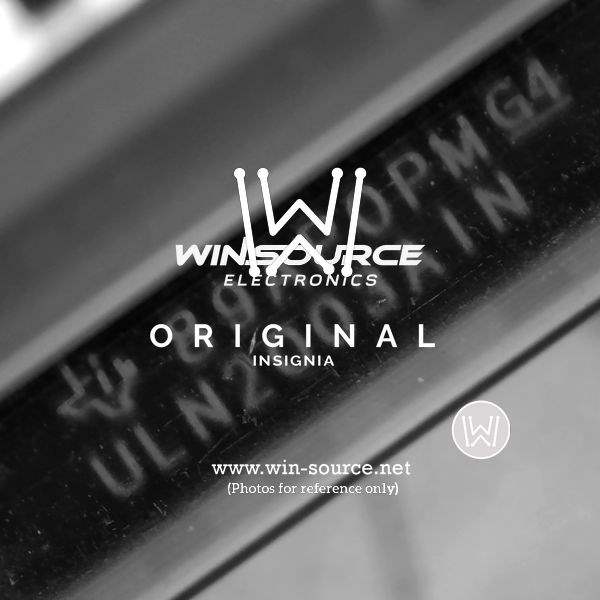

The ULN2003AIN is available in a 16-pin plastic DIP (Dual In-line Package) that is suitable for through-hole mounting. This package ensures robust handling and easy integration into a variety of electronic assemblies. Texas Instruments is known for its commitment to quality, and the ULN2003AIN is no exception, meeting stringent industry standards for performance and reliability.

For engineers and designers looking for a reliable solution to drive high-current loads with digital logic signals, the ULN2003AIN Darlington transistor array from Texas Instruments offers a proven, cost-effective option.
