The UCC5628FQPTR from Texas Instruments is a high-performance SCSI (Small Computer System Interface) terminator designed for Ultra2 LVD/SE (Low Voltage Differential/Single-Ended) bus segments. This advanced terminator is specifically engineered to meet the stringent requirements of fast and reliable data transmission for SCSI-based systems.

Key Features

• Compatibility: The UCC5628FQPTR is fully compliant with the SPI-2 (SCSI Parallel Interface-2) standard, ensuring compatibility with a wide range of SCSI devices and systems.
• Performance: It supports Ultra2 SCSI speeds up to 80 MB/s, making it suitable for high-speed data-intensive applications.
• Multi-mode Operation: This device can operate in both LVD and SE modes, automatically detecting the mode and configuring itself accordingly.
• Thermal Protection: Equipped with thermal protection, the UCC5628FQPTR ensures reliability and longevity even in environments with high temperatures.
• Low Power Consumption: Designed for energy efficiency, it consumes minimal power, reducing the overall power demand of the system.
• High Integration: The terminator integrates nine termination resistors for the nine signal lines, simplifying the design and reducing component count.

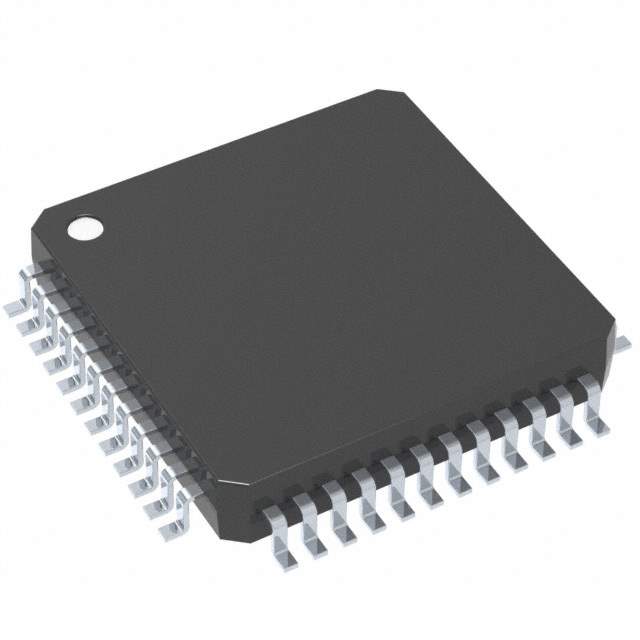

• Package: It comes in a 48-pin LQFP (Low Profile Quad Flat Package) that is suitable for surface mount technology, facilitating easy integration into PCB designs.

Applications

The UCC5628FQPTR is ideal for various applications that require robust and reliable SCSI terminations. These include enterprise servers, RAID systems, storage area networks, workstations, and other SCSI peripheral devices. Its high-speed capabilities and dual-mode support make it a versatile solution for both current and legacy SCSI installations.

Quality and Reliability

As with all Texas Instruments products, the UCC5628FQPTR is manufactured to the highest quality standards, ensuring both performance and reliability for critical data communication systems. Its robust design and advanced features make it an essential component for any high-performance SCSI bus architecture.
