The TXS0101DBVR is a versatile and efficient bidirectional voltage-level translator from Texas Instruments, designed to bridge the gap between devices operating at different voltage levels. This particular component is part of the TXS0101 series, which is known for its ability to facilitate communication between incompatible I/Os, thus enabling seamless integration of peripherals with different voltage requirements.

Key Features

• Bi-Directional Interface: The TXS0101DBVR allows for bidirectional voltage translation across its channels without the need for a direction control signal, simplifying the design and reducing the number of required GPIOs.
• Auto-Direction Sensing: The device automatically senses the direction of data flow and adjusts accordingly, providing a truly plug-and-play experience.
• Wide Voltage Range: It supports voltage levels ranging from 1.65V to 5.5V on the A port and 2.3V to 5.5V on the B port, making it highly adaptable to various system requirements.
• Low Power Consumption: With its low standby current, the TXS0101DBVR is an energy-efficient solution suitable for battery-powered applications.
• High-Speed Data Transfer: The device is capable of supporting up to 100 Mbps (megabits per second) data rates, providing fast and reliable data transfer between components.

Applications

The TXS0101DBVR is ideal for a wide range of applications, including but not limited to:

• Mobile Devices
• Computing Platforms
• Consumer Electronics
• Internet of Things (IoT) Devices
• Data Communication Systems

Package and Quality

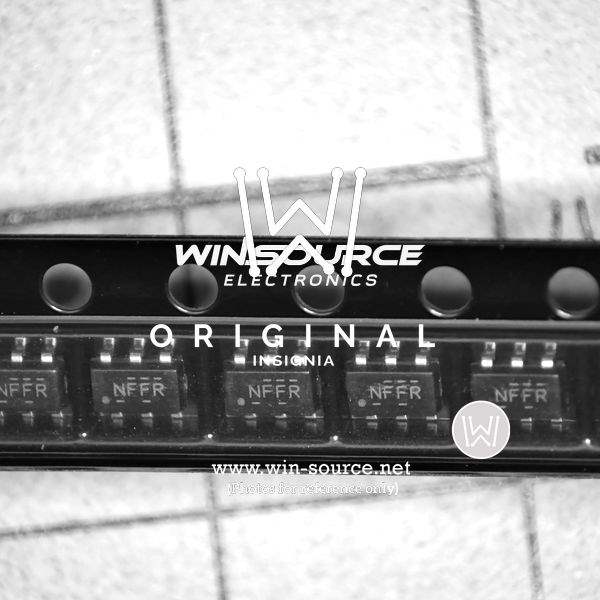

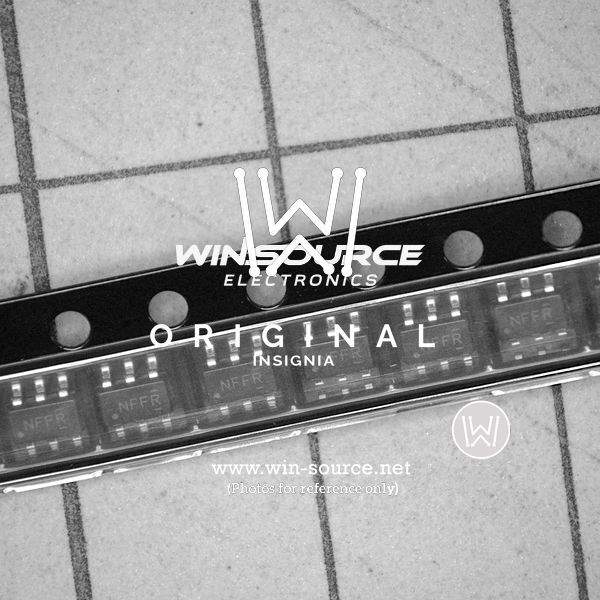

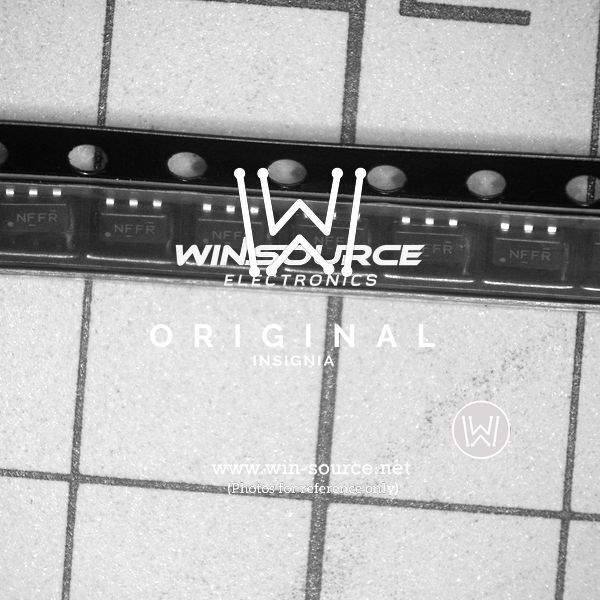

This device comes in a compact SOT-23 (DBV) package, which occupies minimal board space, making it suitable for space-constrained applications. It is also characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide temperature range. The TXS0101DBVR is lead-free and RoHS compliant, reflecting Texas Instruments' commitment to environmental sustainability.

With its robust design and comprehensive features, the TXS0101DBVR from Texas Instruments is an excellent choice for designers looking to interface different logic levels with ease and efficiency.
