The Texas Instruments TXB0104DR is a high-performance, 4-bit bidirectional voltage-level translator designed for two-way voltage-level translation in multi-voltage systems. This device is suitable for applications that require interfacing between different logic levels ranging from 1.2V to 3.6V on the A side (VCCA) and 1.65V to 5.5V on the B side (VCCB), which makes it an ideal component for mixed-signal environments where communication between incompatible I/O voltages is necessary.

Key Features

• Auto-Direction Sensing: The TXB0104DR is capable of automatically sensing and adjusting the direction of data flow without the need for a direction control signal, simplifying design and saving board space.
• High-Speed Data Transfer: It supports high-speed data transfer rates, making it suitable for applications that require quick data transmission while maintaining signal integrity.
• Low Power Consumption: Designed with energy efficiency in mind, the device operates with minimal power consumption, which is crucial for battery-operated and power-sensitive applications.
• Robust ESD Protection: The device includes robust electrostatic discharge (ESD) protection, ensuring reliability and longevity in the face of static electricity and other voltage spikes.

Applications

The TXB0104DR is versatile and can be used in a variety of applications, including but not limited to:

• Mobile Devices
• Media Players
• GPS Navigation Systems
• Data Communication
• Signal Level Translation for Mixed-Mode Environments

Package and Quality

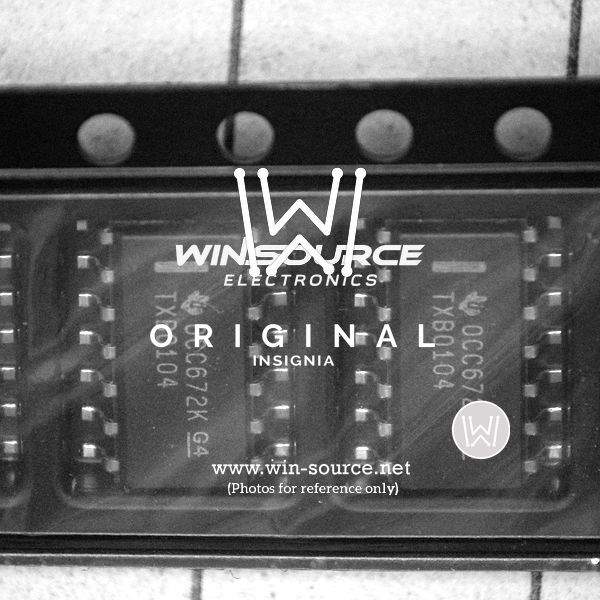

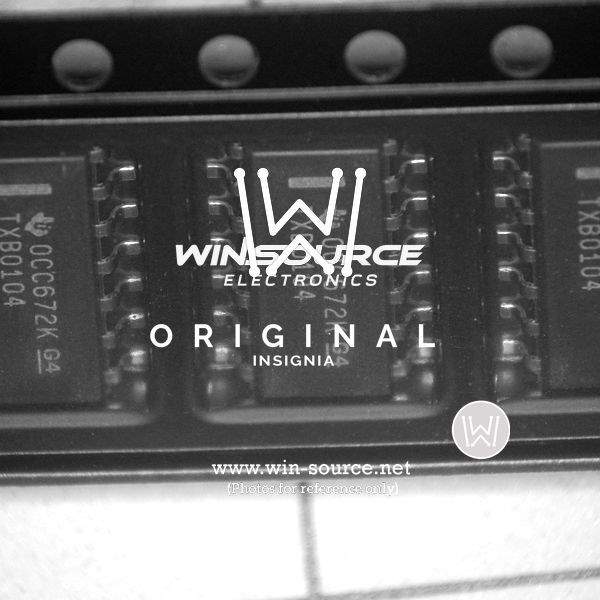

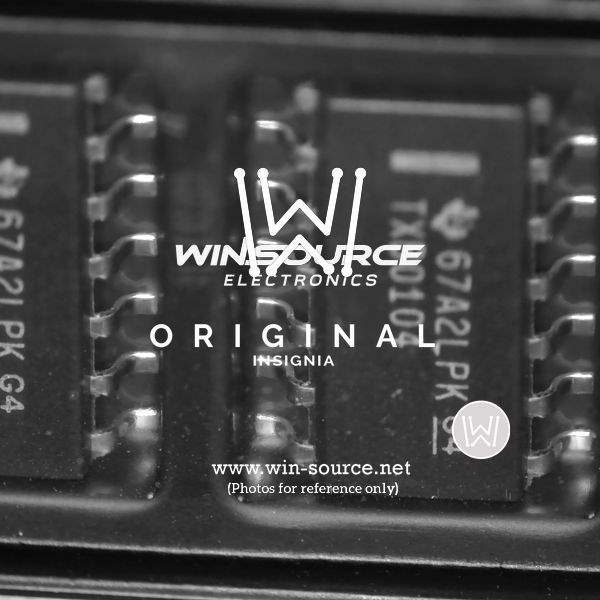

Encased in a slim, 14-pin SOIC package, the TXB0104DR is designed for surface-mount technology (SMT), allowing for a compact footprint on the PCB. Texas Instruments is committed to high-quality manufacturing standards, ensuring that each device meets rigorous performance criteria.

Conclusion

With its bidirectional interface, low power consumption, and high-speed capabilities, the Texas Instruments TXB0104DR is an excellent choice for designers looking to bridge the gap between different voltage domains in a wide range of electronic systems.
