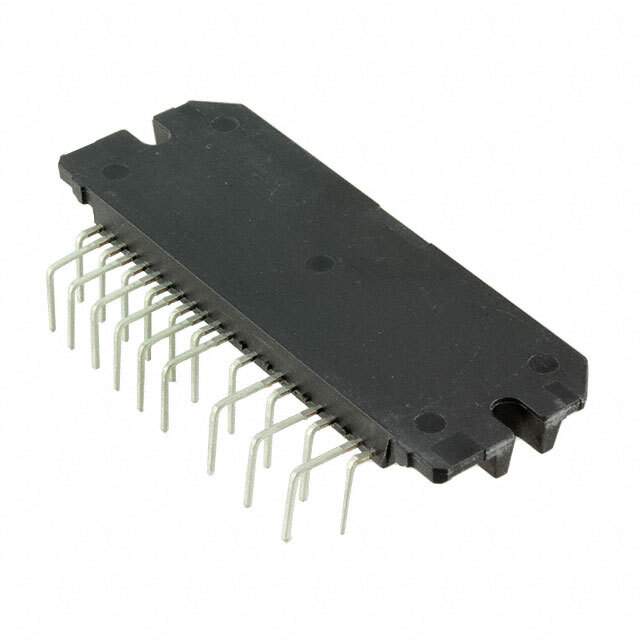

ON Semiconductor STK541UC60C-E Intelligent Power Module

The ON Semiconductor STK541UC60C-E is a highly integrated and efficient Intelligent Power Module (IPM) designed to provide a compact and high-performance solution for a variety of power applications. Known for its exceptional quality and reliability, this module is part of ON Semiconductor's well-regarded S-series IPMs.

Key Features

• Integrated Design: The STK541UC60C-E combines advanced IGBTs with fast recovery diodes and dedicated driving circuits, all within a single package. This integration helps to reduce system complexity and enhance overall performance.
• High Voltage and Current Rating: With a rated voltage of 600V and a current rating of 30A, this IPM is suitable for handling high-power applications with ease.
• Overcurrent Protection: The module includes built-in overcurrent protection, ensuring safe operation and longevity of the device under fault conditions.
• Overtemperature Protection: An integrated temperature sensing circuit provides overtemperature protection, preventing damage from excessive heat.
• Optimized for Efficiency: The low-loss IGBT technology and fast recovery diodes are optimized for minimal power dissipation, which translates to improved energy efficiency in the end application.

Applications

The STK541UC60C-E is versatile and can be used in a wide range of applications, including:

• Motor drives and inverters
• Power supply units
• Renewable energy systems such as solar inverters
• Uninterruptible power supplies (UPS)
• Industrial machines

Quality and Reliability

ON Semiconductor is committed to delivering products that meet the highest standards of quality and reliability. The STK541UC60C-E is no exception and is designed to withstand the rigors of demanding industrial environments.

Easy Integration

With its compact design and comprehensive feature set, the STK541UC60C-E is easy to integrate into existing and new designs, helping to reduce time-to-market for a wide array of power electronic systems.
