Products specifications

Category Integrated Circuits (ICs)>Interface - Signal Buffers, Repeaters, Splitters
Mfr Texas Instruments
Package Tape & Reel (TR)
Applications USB
Number of Channels 2
Voltage - Supply 3V ~ 3.6V
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 25-XFBGA, DSBGA
Supplier Device Package 25-DSBGA (2x2)
Base Product Number TUSB2E22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 296-TUSB2E22YCGRTR
Standard Package 3,000
Win Source Part Number 1014437-TUSB2E22YCGR

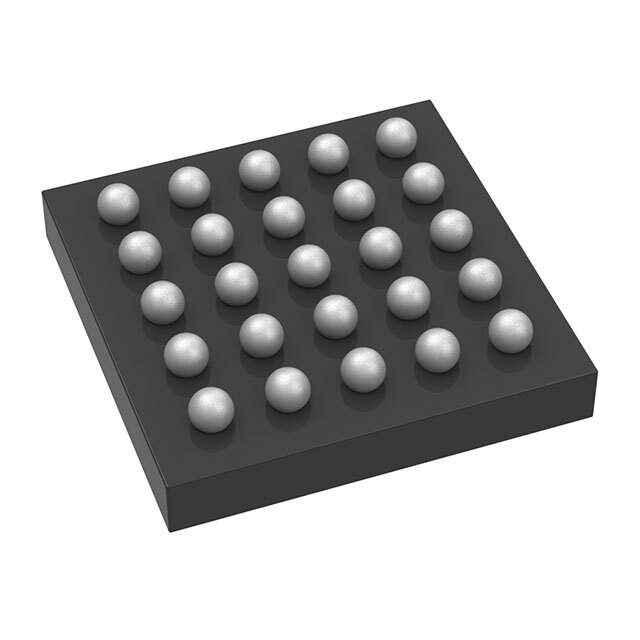

Ultra Librarian 3D Model Ultra Librarian TUSB2E22YCGR CAD Model

Description

The TUSB2E22YCGR is a cutting-edge USB 2.0 high-speed signal conditioner designed and manufactured by Texas Instruments. This advanced product is specifically engineered to enhance signal quality by conditioning the USB signals in systems that require extended cable lengths or are housed in challenging electrical environments.

Key Features:

  • USB 2.0 Compliance: The TUSB2E22YCGR complies with the USB 2.0 standard, ensuring compatibility with a wide range of devices and systems.
  • Signal Conditioning: The device includes features that condition the signal to compensate for signal degradation due to long cable lengths, thus extending the range and reliability of USB connections.
  • High-Speed Data Rates: It supports high-speed data rates of up to 480 Mbps, making it suitable for applications that require fast data transfer.
  • Low Power Consumption: Designed with energy efficiency in mind, the TUSB2E22YCGR operates with minimal power consumption, which makes it ideal for portable and battery-powered applications.
  • Enhanced Signal Integrity: The signal conditioner improves signal integrity, providing robust operation in environments with high levels of electromagnetic interference (EMI).
  • Temperature Range: The device operates over an industrial temperature range, ensuring reliable performance across diverse operating conditions.

Applications:

The TUSB2E22YCGR is versatile and can be used in various applications, including but not limited to:

  • Desktop and Laptop Computers
  • Docking Stations
  • USB Hubs and Peripherals
  • Industrial Control Systems
  • Consumer Electronics

Technical Specifications:

The TUSB2E22YCGR comes in a compact QFN package, making it suitable for space-constrained applications. It requires a single 3.3V power supply for operation and includes an integrated 1.5kΩ pull-up resistor on the upstream port, which simplifies the design for USB applications.

In conclusion, the TUSB2E22YCGR from Texas Instruments is a robust USB 2.0 high-speed signal conditioner, perfect for designers looking to enhance USB signal quality in their products. Its combination of high-speed data transfer, low power consumption, and improved signal integrity makes it a reliable choice for a multitude of USB-enabled devices.
