The TUSB213RGYR is a high-performance signal conditioner designed by Texas Instruments to enhance signal quality by compensating for intersymbol interference (ISI) in USB applications. This advanced semiconductor is specifically tailored for operation with USB 2.0 interfaces, where it helps to maintain signal integrity over extended cable lengths. The TUSB213RGYR is an essential component for any system that requires reliable USB connectivity with consistent data rates.

Key Features

• Signal Quality Improvement: The TUSB213RGYR uses equalization to counteract the effects of ISI, thereby improving the quality of the USB signal over cables.
• Adjustable Equalization: It offers adjustable levels of equalization, enabling optimization for various cable types and lengths.
• USB 2.0 Compatibility: This device is designed to operate seamlessly with USB 2.0 interfaces, supporting High-Speed (480 Mbps) data rates.
• Low Power Consumption: The TUSB213RGYR is engineered for efficiency, minimizing power consumption to suit battery-powered applications.

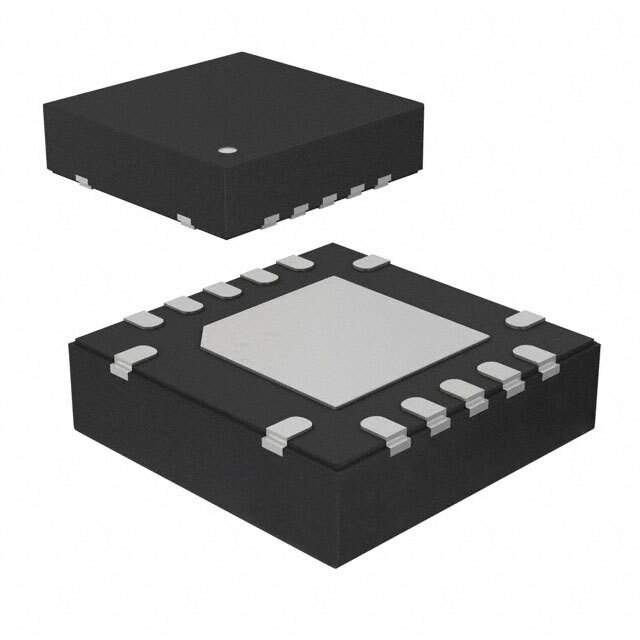

• Small Form Factor: Housed in a compact QFN package, it occupies minimal space on a PCB, making it ideal for portable and space-constrained devices.

Applications

The versatility of the TUSB213RGYR allows it to be used in a wide range of applications. It is particularly well-suited for devices requiring reliable USB connections, such as desktop and laptop computers, docking stations, port replicators, and USB hubs. Additionally, it can be integrated into consumer electronics, including televisions, gaming consoles, and home theater systems, where maintaining signal integrity is crucial for user experience.

Ordering Information

The TUSB213RGYR is available in a tape and reel format, facilitating easy assembly during the manufacturing process. For detailed specifications, datasheets, and ordering information, customers should visit the Texas Instruments official website or contact authorized distributors.
