Product Overview: TSC2046IRGVT by Texas Instruments

The TSC2046IRGVT is a state-of-the-art touch screen controller from the renowned manufacturer, Texas Instruments. This integrated circuit is designed to provide a high level of precision and reliability for touch screen applications. It is an upgraded version of the ADS7846 touch screen controller and is fully compatible with the original, making it an ideal choice for designers looking to enhance their touch screen system capabilities.

Key Features

• 4-Wire Touch Screen Interface: The TSC2046IRGVT is optimized for use with 4-wire resistive touch screens, delivering accurate and responsive touch detection.
• High Resolution: It features a 12-bit resolution, ensuring fine-grained detection of touch coordinates for precise user input.
• On-Chip Voltage Reference: The device includes an on-chip 2.5V voltage reference that can be used for the auxiliary input, battery monitor, and temperature measurement functions.
• Programmable Functionality: Users can program functions such as resolution, power-down, and reference sources, allowing for customization to specific application requirements.
• Low Power Consumption: Designed for power-sensitive applications, it offers a low power consumption mode, making it ideal for portable and battery-operated devices.

Applications

The TSC2046IRGVT is incredibly versatile and can be used in a wide array of applications, including:

• Smartphones and Tablets
• Personal Digital Assistants (PDAs)
• Point-Of-Sale (POS) Machines
• Portable Instrumentation
• Navigation Systems
• Industrial Controls

Technical Specifications

The TSC2046IRGVT operates on a supply voltage range of 2.7V to 5.25V, making it compatible with a variety of logic levels and system architectures. It communicates via a standard serial interface compatible with SPI™, QSPI™, and MICROWIRE™ protocols, ensuring easy integration into existing designs.

Package and Availability

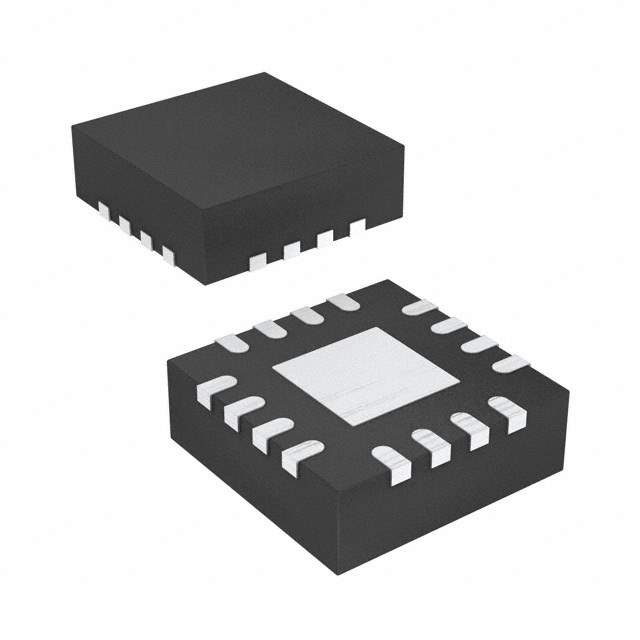

Offered in a compact VQFN-16 package, the TSC2046IRGVT is designed for space-constrained applications. It is available for order directly from Texas Instruments or through their network of authorized distributors.

With its robust feature set and flexible design, the TSC2046IRGVT from Texas Instruments represents a premium solution for touch screen control in a variety of electronic devices.
