Same model may have multiple batches, images only for reference.

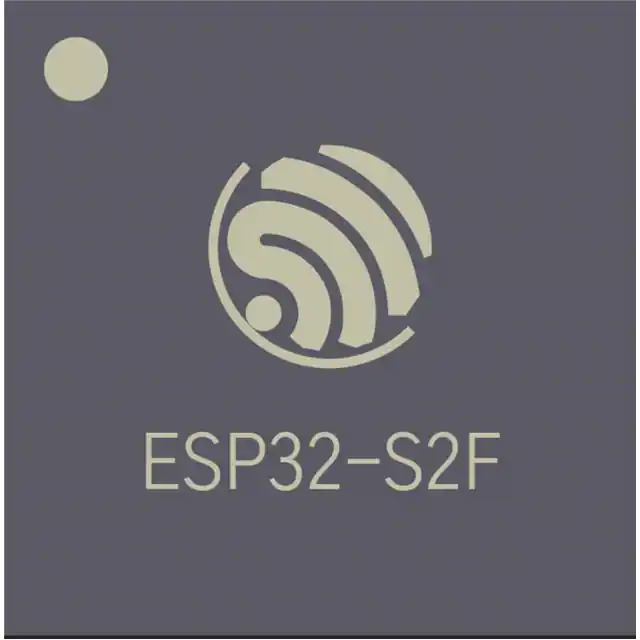

ESP32-S2FN4R2 Espressif
Same model may have multiple batches, images only for reference.

ESP32-S2FN4R2

Part No ESP32-S2FN4R2
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD WI-FI IC, SINGLE-CORE MCU / WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Datasheet
ESP32-S2FN4R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
Product Status Active
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation -
Frequency 2.4GHz
Data Rate 150Mbps
Power - Output 19.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Antenna Type Antenna Not Included
Utilized IC / Part ESP32-S2
Memory Size 128kB ROM, 320kB SRAM
Voltage - Supply 2.8V ~ 3.6V
Current - Receiving 63mA ~ 68mA
Current - Transmitting 160mA ~ 310mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 56-VFQFN Exposed Pad
Base Product Number ESP32-S2
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Win Source Part Number 1354204-ESP32-S2FN4R2
Ultra Librarian 3D Model Ultra Librarian ESP32-S2FN4R2 CAD Model

Description

The Espressif Systems ESP32-S2FN4R2 is a compact and cost-effective RF Transceiver Module.

  • Series: ESP32
  • Frequency: 2.4GHz
  • ROM Size: 128kB
  • SRAM Size: 320kB
  • Protocol: WiFi 802.11b/g/n
  • Power - Output: 19.5dBm
  • Sensitivity: -97dBm
  • Serial Interfaces: ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
