The TSB43AA22 device from Texas Instruments is a highly-integrated IEEE 1394a-2000 compliant PHY/Link-Layer Controller, designed to provide a complete solution for high-speed serial bus applications. This device is perfect for a wide range of computing and consumer electronics applications, offering a seamless interface for digital audio/video, storage, and networking functions.

Key Features

• Compliance: Fully compliant with the 1394 Open Host Controller Interface (OHCI) specification and the IEEE 1394a-2000 standard.
• Data Transfer Rates: Supports 100Mbits/s, 200Mbits/s, and 400Mbits/s data transfer rates, enabling high-speed communication and data exchange.
• Integrated PHY: Features a PHY capable of operating at S100, S200, and S400 speeds for flexible connectivity options.
• Link-Layer Controller: The link-layer controller provides the logic required for IEEE 1394 packet transmission and reception.
• Ports: Equipped with two cable ports for direct connection to the 1394 bus and an additional internal port for connection to a front panel or other internal device.

Applications

The TSB43AA22 is ideal for a variety of applications, including:

• Desktop and laptop computers
• Digital cameras and camcorders
• External storage devices
• Home entertainment systems
• Networking hardware

Technical Specifications

At the heart of the TSB43AA22 is its advanced technology that ensures reliable performance and interoperability:

• Power Management: Sophisticated power management capabilities with support for multiple power-saving states.

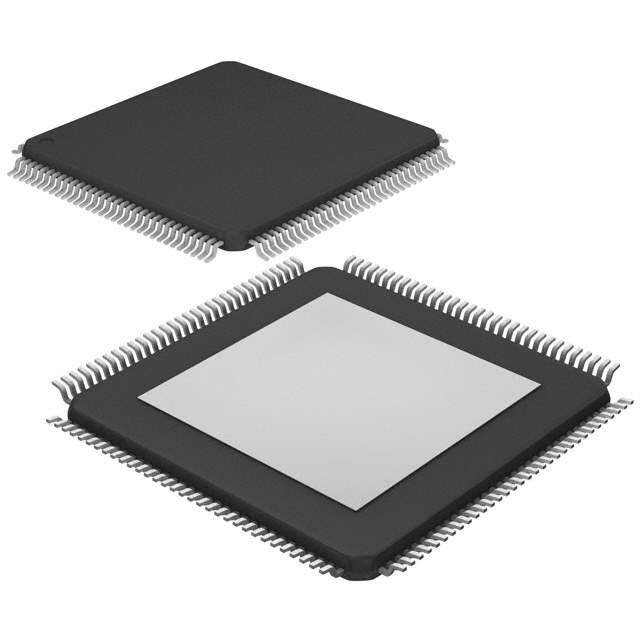

• Package: Available in a 100-pin Plastic Quad Flat Pack (PQFP) that is suitable for surface mount technology (SMT).
• Temperature Range: Operates within an industrial temperature range, making it suitable for a variety of environments.

Manufacturer Support

Texas Instruments provides comprehensive technical support for the TSB43AA22, including detailed datasheets, application notes, and design resources to assist developers in integrating this controller into their products efficiently.
