TRF1305B2RYPR Texas Instruments

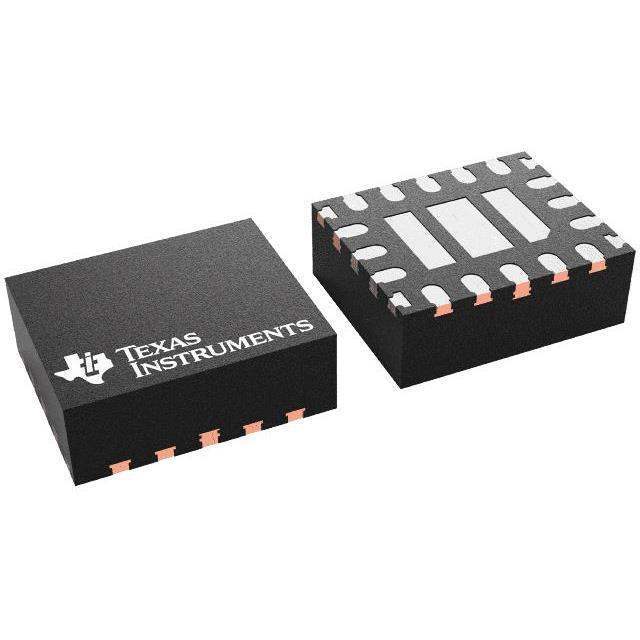

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Frequency 0Hz ~ 6.5GHz
P1dB 16dBm
Gain 9.8dB
Noise Figure 12.4dB
RF Type VSAT
Voltage - Supply 2.5V ~ 5V
Current - Supply 180mA
Test Frequency 2GHz
Grade -
Mounting Type Surface Mount
Package / Case 16-QFN Exposed Pad
Supplier Device Package 16-WQFN-FCRLF (2.5x3)
Ultra Librarian 3D Model Ultra Librarian TRF1305B2RYPR CAD Model

Description

RF Amplifier IC VSAT 0Hz ~ 6.5GHz 16-WQFN-FCRLF (2.5x3)
