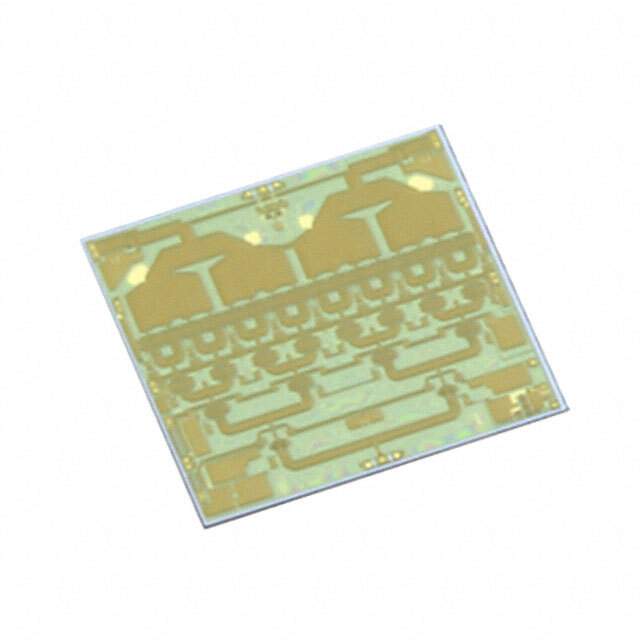

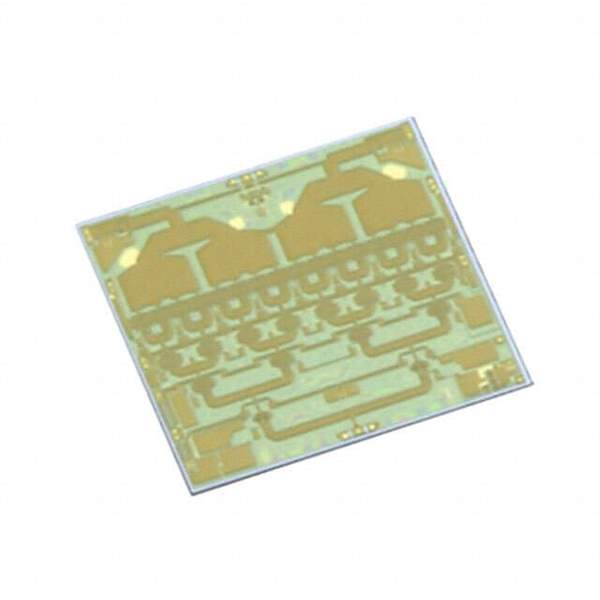

MAAP-011140-DIE Real Image1 MAAP-011140-DIE Real Image2
Same model may have multiple batches, images only for reference.
MAAP-011140-DIE Real Image1 MAAP-011140-DIE Real Image2
MAAP-011140-DIE Real Image1 MAAP-011140-DIE Real Image2
Same model may have multiple batches, images only for reference.

MAAP-011140-DIE

Part No MAAP-011140-DIE
Manufacturer M/A-Com Technology Solutions
Catalog RF Amplifiers
Description IC RF AMP 27.5GHZ-30GHZ DIE / RF Amplifier IC 27.5GHz ~ 30GHz Die
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless>RF Amplifiers
Mfr M/A-Com Technology Solutions
Series -
Package Tray
Frequency 27.5GHz ~ 30GHz
P1dB 36dBm
Gain 24dB
Noise Figure -
RF Type -
Voltage - Supply 6V
Current - Supply 5.2A
Test Frequency -
Mounting Type Surface Mount
Package / Case Die
Supplier Device Package Die
Base Product Number MAAP-011140
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Standard Package 25 pcs
Win Source Part Number 1382727-MAAP-011140-DIE
Ultra Librarian 3D Model Ultra Librarian MAAP-011140-DIE CAD Model

Description

The RF Amplifier with Win Source Part Number 1382727-MAAP-011140-DIE is a high-performance component designed for RF and wireless applications. It offers a gain of 24dB and operates in the frequency range of 27.5GHz to 30GHz.

  • Gain: 24dB
  • Frequency Range: 27.5GHz to 30GHz
  • Package: Tray
  • Supply Voltage: 6V
  • Current Supply: 5.2A
  • P1dB: 36dBm
  • RF Type: Not Specified
  • Noise Figure: Not Specified
  • Mounting Type: Surface Mount
  • Package/Case: Die
  • Supplier Device Package: Die
  • HTSUS Code: 8542.33.0001
  • Manufacturer: M/A-Com Technology Solutions
  • Base Product Number: MAAP-011140
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • Standard Package: 25 pieces
