The TPS79501DRBEVM from Texas Instruments is a fully integrated evaluation module designed to help engineers and designers test the performance and functionalities of the TPS79501 low-dropout regulator (LDO). This LDO provides a stable and reliable power supply with an output voltage of 5V, and it is capable of delivering up to 500 mA of output current. The TPS79501DRBEVM is an invaluable tool for rapid prototyping and expedited design cycles, ensuring that the TPS79501 can be easily incorporated into a wide range of applications.

Key Features

• High Accuracy: The TPS79501 LDO features a high accuracy output voltage, ensuring that the connected load receives a consistent power supply.
• Low Dropout: With a low dropout voltage, this LDO maintains its output regulation even when the supply voltage is close to the output voltage, making it ideal for battery-powered applications.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features that safeguard the module and the end application from potential damage due to overheating or excessive current draw.
• Adjustable Output: The output voltage is adjustable via external resistors, providing flexibility for various application requirements.
• Power Good Output: This feature provides a signal indicating when the output voltage is stable and within its nominal range, which is crucial for power sequencing in complex systems.

Applications

The TPS79501DRBEVM is suitable for a multitude of applications that require a stable and precise power supply. These include but are not limited to:

• Portable and battery-powered devices
• Microcontroller-based systems
• Wireless communication equipment
• Medical devices and instrumentation
• Automotive infotainment and telematics

Design and Layout

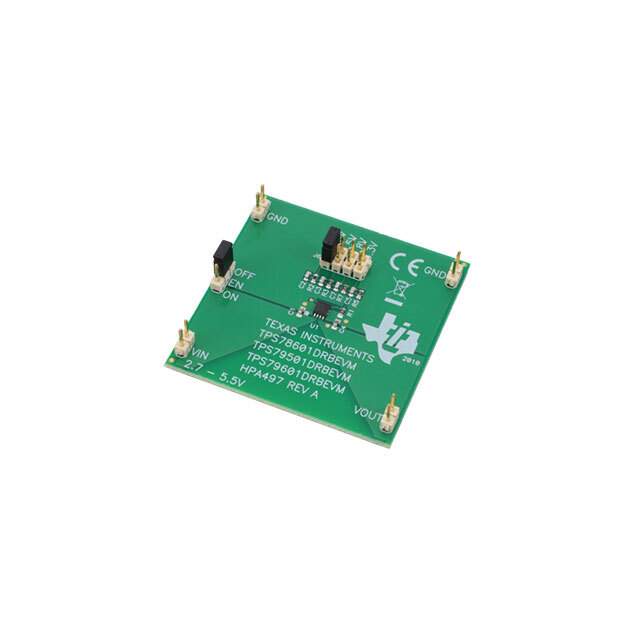

The evaluation module comes in a user-friendly layout that simplifies connectivity and testing. It includes test points for easy access to the LDO's inputs and outputs, enabling quick measurements and modifications. The TPS79501DRBEVM also features a compact design, making it easy to integrate into existing setups without requiring significant space.

Conclusion

With its robust feature set and versatile application scope, the TPS79501DRBEVM from Texas Instruments is an essential tool for developers looking to leverage the benefits of the TPS79501 LDO. Its ease of use and comprehensive protection features make it a reliable choice for powering sensitive electronic circuits.
