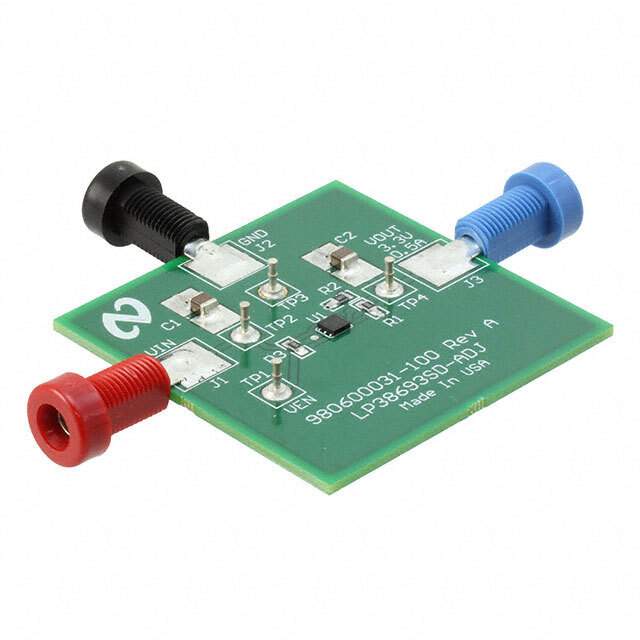

The LP38693-ADJEV from Texas Instruments is a high-performance, low-dropout regulator designed to deliver a continuous, adjustable output voltage with a high degree of accuracy. This regulator is part of the LP3869x series, which is known for its low quiescent current, making it ideal for battery-powered applications where power efficiency is crucial.

Key Features

• Adjustable Output: The LP38693-ADJEV provides an adjustable output voltage that can be set from 1.25V to 5.5V using external resistors, allowing for a wide range of applications.
• High Accuracy: This regulator offers excellent regulation, maintaining a high level of accuracy even under varying input voltages and load conditions.
• Low Dropout: The low dropout voltage of the LP38693-ADJEV minimizes power loss and improves efficiency, which is especially beneficial when the input voltage is close to the output voltage.
• Low Quiescent Current: It features a low quiescent current, which reduces standby power consumption and extends battery life in portable devices.
• Thermal Protection: The device includes built-in thermal shutdown and current limit features to protect against over-current and over-temperature conditions.
• Stable with Low-ESR Output Capacitors: This regulator is stable with ceramic capacitors, which are known for their low equivalent series resistance (ESR).

Applications

The versatility of the LP38693-ADJEV makes it suitable for a diverse range of applications. It is commonly used in portable devices such as PDAs, mobile phones, and wireless handsets. Additionally, it is ideal for powering microcontrollers, DSPs, and other sensitive electronic components that require a stable and precise power supply.

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the LP38693-ADJEV is no exception. It is designed to meet the stringent requirements of industrial and commercial applications, ensuring long-term performance and stability.
