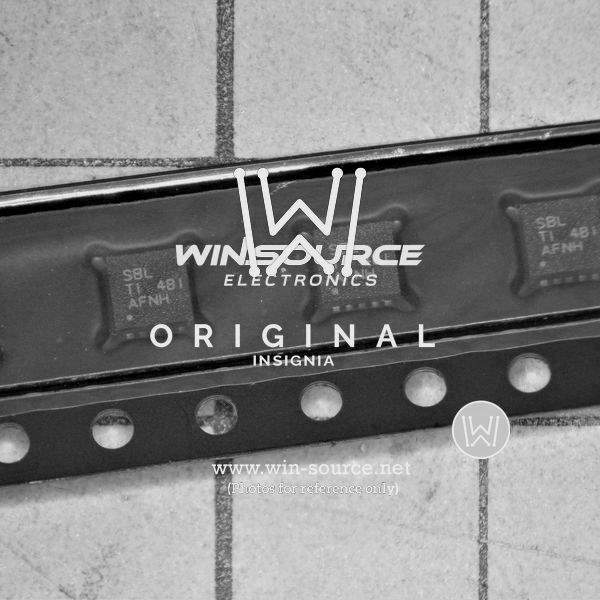

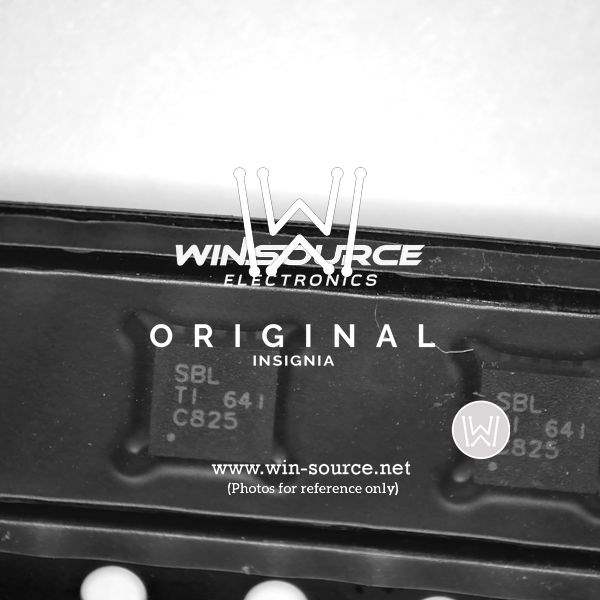

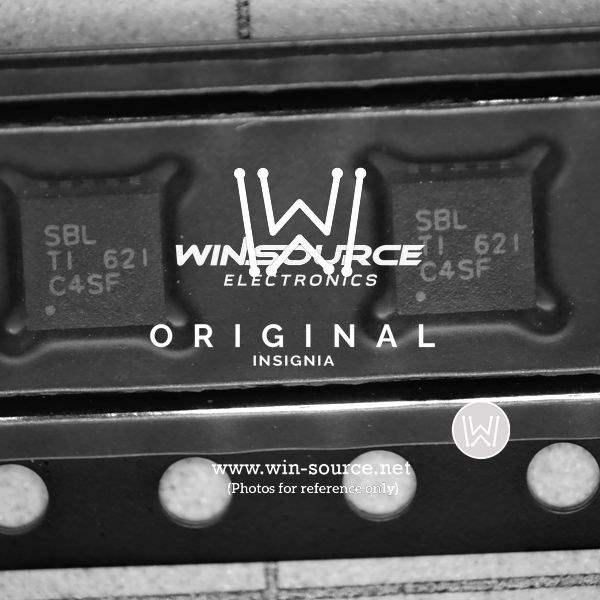

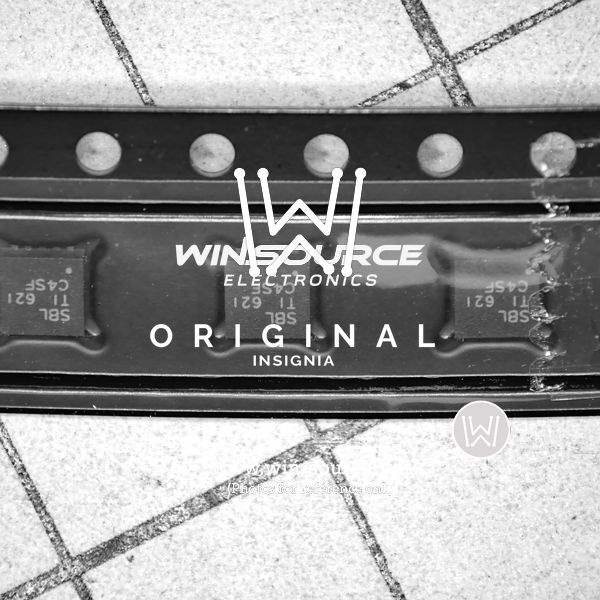

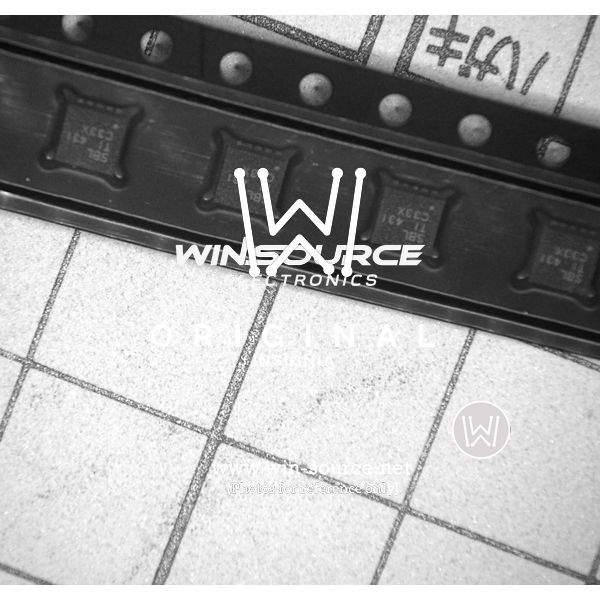

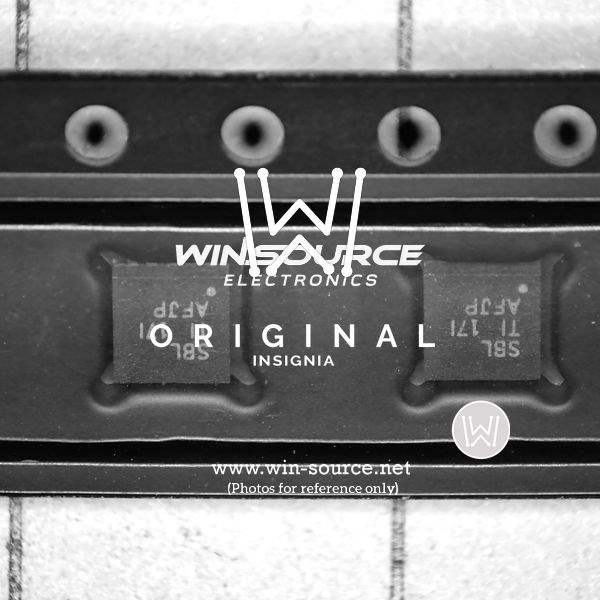

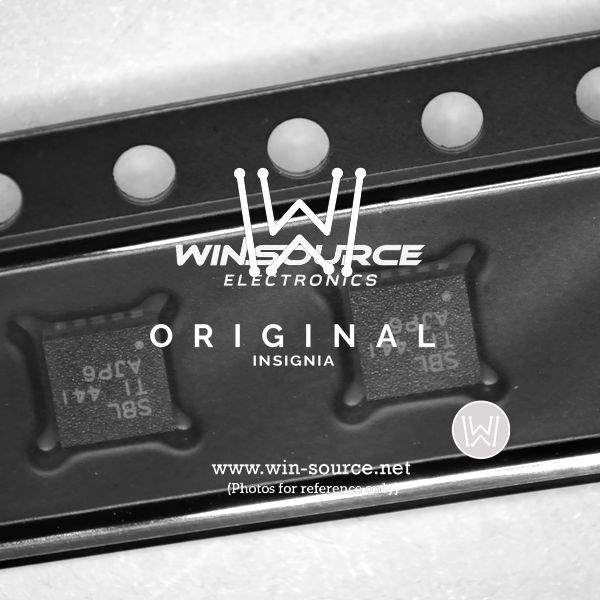

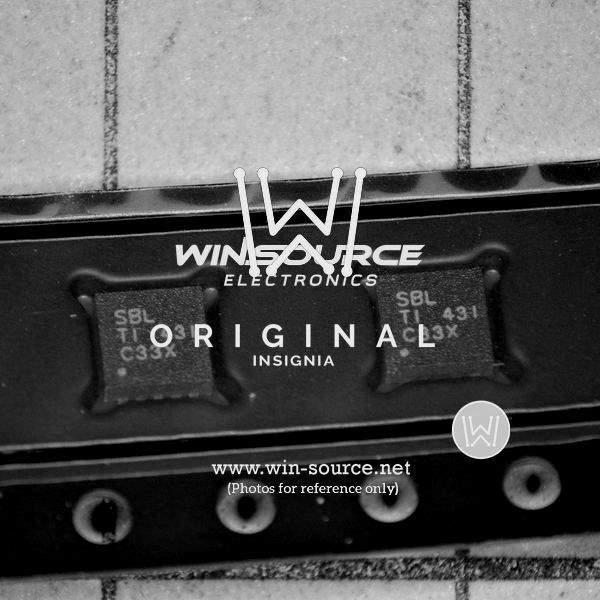

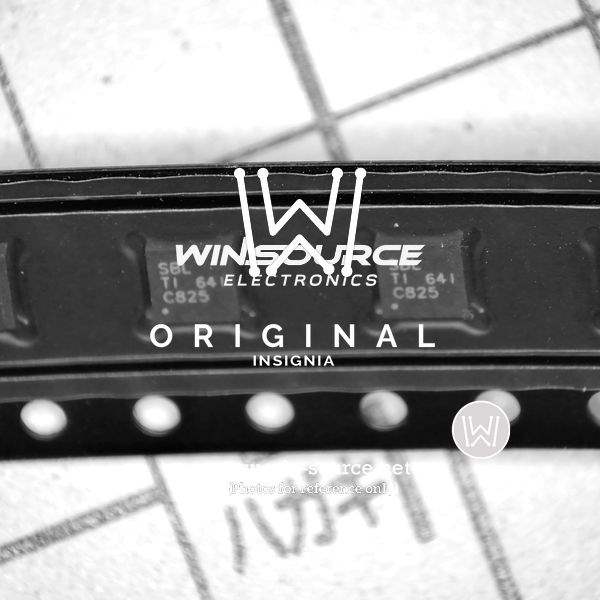

Overview of Texas Instruments TPS61232DRCR

The TPS61232DRCR is a high-efficiency, synchronous boost converter engineered by Texas Instruments, designed to provide a compact and reliable power solution for a wide range of applications. This advanced component is housed in a small 10-VSON package, making it an ideal choice for space-constrained designs that require a high power density.

Key Features

• Wide Input Voltage Range: The TPS61232DRCR operates over a broad input voltage range of 2.3V to 5.5V, making it versatile for use in various battery-powered devices where input voltage may fluctuate.
• High-Efficiency Synchronous Boost: Its synchronous boost topology ensures high efficiency, which is critical for maximizing battery life in portable applications.
• Adjustable Output Voltage: The output voltage is adjustable from 2.5V to 5.5V, allowing designers to tailor the voltage to meet the requirements of the specific application.
• Integrated Power Switches: The device includes integrated power switches capable of delivering up to 2A of continuous output current, which can help reduce external component count.
• Power Save Mode: It features a Power Save Mode that improves efficiency at light loads, further extending battery life in portable devices.

Applications

The TPS61232DRCR is suitable for a variety of applications, including but not limited to:

• Portable and battery-powered equipment
• Smartphones and tablets
• Wireless power transmitters
• Handheld medical devices
• IoT devices

Reliability and Protection

With built-in safety features such as over-temperature protection and input under-voltage lockout, the TPS61232DRCR ensures reliable operation under adverse conditions. Additionally, the device's thermal shutdown feature provides further protection by preventing overheating and potential damage to the IC and surrounding components.

In summary, the TPS61232DRCR from Texas Instruments is a versatile and efficient solution for designers looking to optimize power management in compact, battery-powered devices. Its combination of wide input voltage range, high efficiency, adjustable output, and integrated safety features make it an excellent choice for a variety of applications.
