ST1PS01GJR Step-Down Converter by STMicroelectronics

The ST1PS01GJR is a highly efficient, nano-quiescent miniaturized synchronous step-down converter from STMicroelectronics, designed to deliver outstanding performance for modern portable and space-constrained applications. This product is part of the ST1PS01 series, which are known for their compact size and high efficiency at low output currents.

Key Features

• Versatile Input Voltage: The converter operates with an input voltage range from 1.8V to 5.5V, making it suitable for a wide array of power sources, including single-cell batteries and regulated 5V rails.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.5V up to 5.5V via an external voltage divider, providing great flexibility to power different ICs that require various voltage levels.
• High Efficiency: With a 92% peak efficiency, the ST1PS01GJR ensures minimal power loss during conversion, which is critical for battery-powered devices to extend their operating life.
• Ultra-Low Quiescent Current: The device boasts a nano-quiescent current of just 500nA, which significantly reduces the power consumption when the load is light or in standby mode.
• Power Saving Mode: It features an automatic step-down switching frequency reduction at light loads, which further improves efficiency.

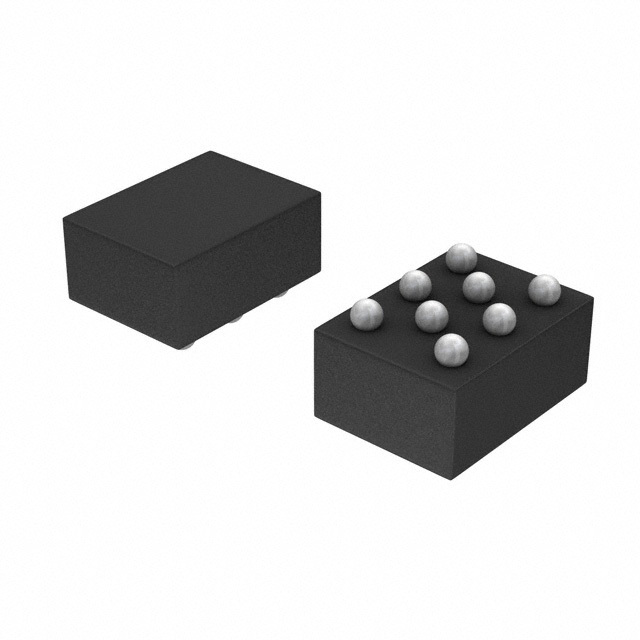

• Compact Package: Housed in a tiny 1.11mm x 1.46mm flip-chip package, the ST1PS01GJR is ideal for space-constrained applications such as wearable devices, IoT sensors, and portable electronics.

Applications

The ST1PS01GJR is an excellent choice for a multitude of applications that require a compact, efficient power solution. It is especially well-suited for:

• Wearable devices such as smartwatches and fitness trackers
• Wireless sensors and IoT devices
• Portable medical devices
• Energy harvesting systems
• Smart home and automation controls

Conclusion

In summary, the ST1PS01GJR step-down converter from STMicroelectronics is a highly integrated power solution that offers a unique combination of low power consumption, high efficiency, and flexible output voltage customization, all within a minuscule form factor. Its performance and versatility make it an ideal choice for designers looking to optimize power management in their next-generation portable and space-sensitive electronic devices.
