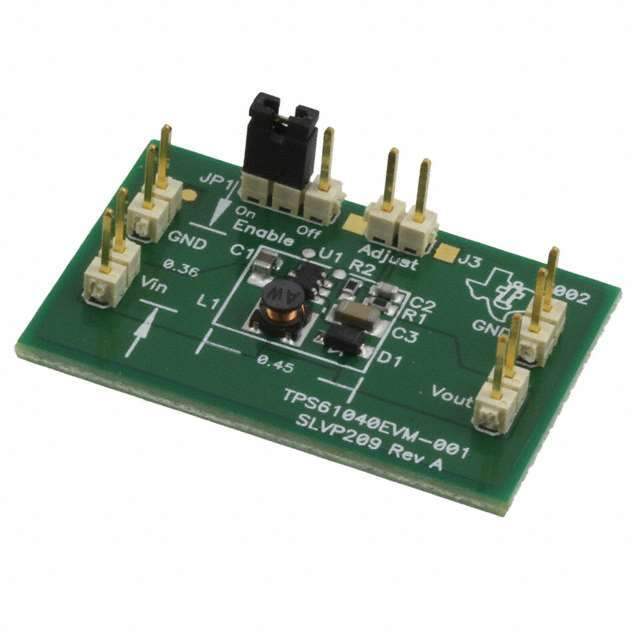

The TPS61040EVM-001 from Texas Instruments is a high-performance evaluation module designed for testing and performance validation of the TPS61040 DC-DC converter. This converter is a high-frequency, boost-switching regulator with integrated 1.2-A, 40-V power switch, suitable for applications requiring high power efficiency and a compact form factor.

Key Features

• Adjustable output voltage up to 28V
• Up to 95% power efficiency
• Low quiescent current ideal for battery-powered applications
• Small package size with thermal protection
• Integrated power diode
• Fixed and adjustable output voltage versions

Applications

The TPS61040EVM-001 is suitable for a wide range of applications, including but not limited to:

• White LED backlighting
• Organic LED (OLED) display power supply
• Portable power
• Battery-powered equipment
• Low-power DC-DC converters

Design and Functionality

The evaluation module includes the TPS61040 adjustable output voltage version and allows for easy evaluation of all aspects of the TPS61040. The layout accommodates different test points to analyze the performance of the DC-DC converter in various conditions and configurations. The module offers flexibility to change the output voltage and includes jumpers and headers for easy probing and adjustments.

Why Choose TPS61040EVM-001?

Choosing the TPS61040EVM-001 for your design needs ensures a quick and efficient way to evaluate the TPS61040 converter's features and performance without the need to develop a prototype from scratch. Its user-friendly design and comprehensive documentation facilitate a better understanding of the converter's capabilities, allowing for a streamlined integration into the final product design.

For further information, visit the Texas Instruments website or contact their support team for detailed technical specifications and assistance.
