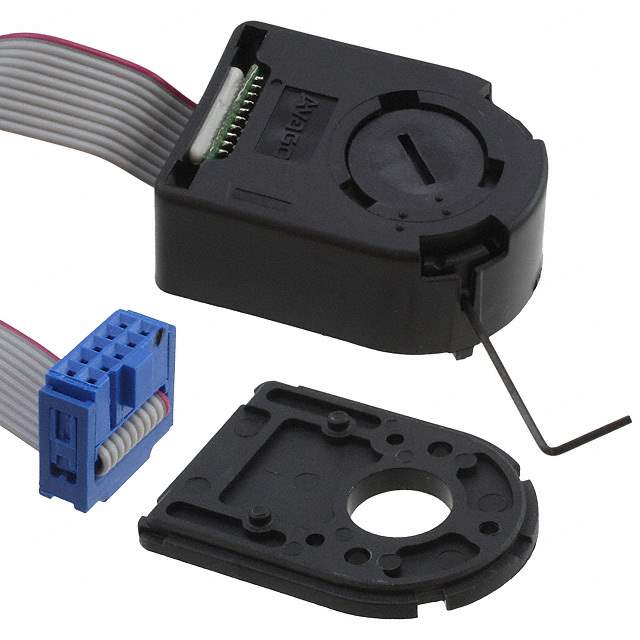

HEDL-5540#A06

Part No HEDL-5540#A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders - Industrial
Mfr Broadcom Limited
Series HEDL
Package Bulk
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Cable with Connector
Rotational Life (Cycles Min) -
Base Product Number HEDL-5540
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Standard Package 20 pcs
Win Source Part Number 1382220-HEDL-5540#A06
Ultra Librarian 3D Model Ultra Librarian HEDL-5540#A06 CAD Model

Description

The HEDL-5540#A06 is an industrial encoder designed for precise position and motion sensing in various applications from Broadcom Limited.

  • Output Type: Quadrature with Index
  • Actuator Type: 1/4" Open Center
  • Supply Voltage: 5V
  • Mounting: Chassis/Motor
  • Termination: Cable
