The CSD87353Q5D is a state-of-the-art NexFET™ power block from Texas Instruments, designed for high-performance power conversion applications. This innovative component integrates two power MOSFETs in a single package, providing a compact and efficient solution for power management. The CSD87353Q5D is particularly suited for synchronous buck applications, including high-density point of load (POL) converters, server and telecom power supplies, and other power systems requiring a small footprint and high efficiency.

Key Features

• High Efficiency: The CSD87353Q5D boasts an optimized design that minimizes conduction and switching losses, resulting in superior efficiency levels critical for energy-sensitive applications.
• Compact Footprint: The integration of two MOSFETs in one package allows for a reduction in PCB space, making it ideal for applications with limited board space.
• Advanced Technology: Utilizing TI's state-of-the-art NexFET technology, the CSD87353Q5D offers improved thermal performance and reduced parasitic inductance compared to traditional discrete solutions.
• High Performance: With its low on-resistance and high current handling capabilities, this power block is capable of delivering high performance in a wide range of operating conditions.

Specifications

• Voltage Rating: Optimized for 5V, 12V, and 24V applications
• Continuous Drain Current: High current capability for demanding applications
• Power Stage: Two N-channel power MOSFETs in a half-bridge configuration

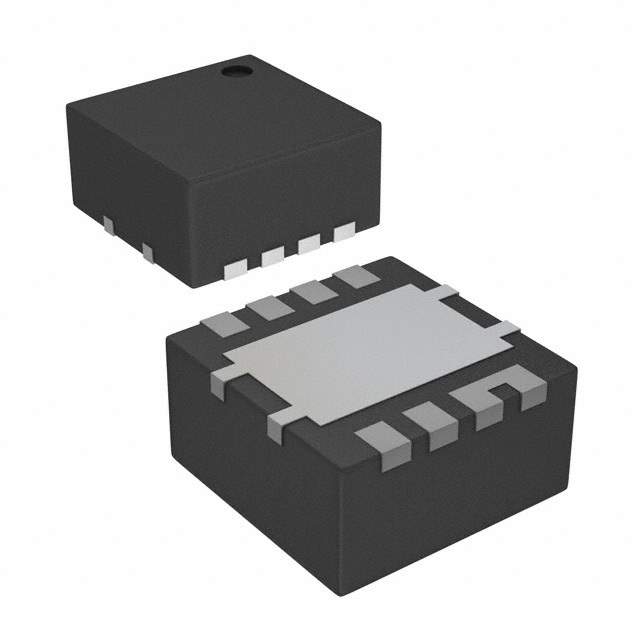

• Package: 5x6 mm outline with dual-cooling capability

Applications

• Point of Load (POL) Converters
• Server and Telecom Power Supplies
• Motor Drives and Inverters
• Battery Powered Systems
• DC-DC Converters

The CSD87353Q5D from Texas Instruments represents a leap forward in power conversion technology, offering designers a robust and efficient solution for their most demanding power supply requirements. Its combination of high efficiency, compact size, and high performance makes it a top choice for engineers looking to optimize their power systems.
