Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Type Hot Plug Controller
Number of Channels 12
Internal Switch(s) Both
Applications PCI, PCI-X
Features Latched Fault, Thermal Limit, UVLO
Programmable Features Current Limit, Slew Rate
Supply Voltage - Operating 1.5V, 3.3V, 5V, ±12V
Current - Output (Max) 100mA, 375mA, 500mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 80-HTQFP (12x12)
Win Source Part Number 213322-TPS2342PFPG4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPS2342PFPG4 CAD Model

Description

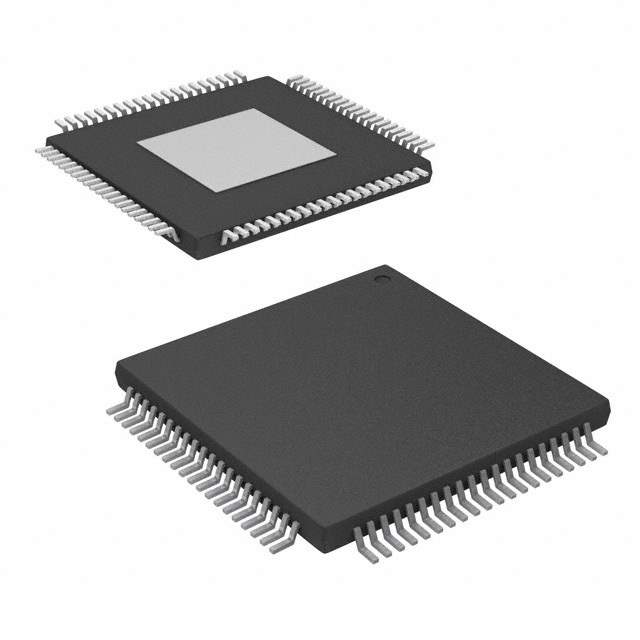

The TPS2342PFPG4 is a high-performance integrated circuit from Texas Instruments, designed to deliver efficient power management solutions for complex digital systems. This advanced power interface switch is part of the TPS series, renowned for its reliability and versatility in various electronic applications.

Key Features

  • High-Efficiency Power Distribution: The TPS2342PFPG4 is engineered to distribute power with high efficiency, making it ideal for applications that require stable and reliable power supply.
  • Hot Swap Capability: This device supports hot swapping, allowing electronic components to be removed or replaced while the system is operational without causing any interruption or damage.
  • Integrated Charge Pump: With an integrated charge pump, the TPS2342PFPG4 can drive N-channel MOSFETs, eliminating the need for external components and simplifying the design.
  • Programmable Current Limit: Users can set the current limit to match the requirements of their specific applications, ensuring protection against overcurrent conditions.
  • Under-Voltage Lockout (UVLO): The UVLO feature ensures that the device operates only when the supply voltage is within the acceptable range, thereby protecting the system from low-voltage conditions.

Applications

The TPS2342PFPG4 is suitable for a wide range of applications, including but not limited to:

  • Server and Telecom Power Systems
  • RAID Systems
  • Industrial Control Systems
  • Network Routers and Switches

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The TPS2342PFPG4 is built with this commitment in mind, ensuring it meets the stringent requirements of industrial and commercial applications. With its robust design and proven technology, this power interface switch is designed to provide a reliable solution for managing power in complex digital systems.

Technical Specifications

For detailed technical specifications, please refer to the TPS2342PFPG4 datasheet available on the Texas Instruments website or through authorized distributors.
