Product Overview: TPS22932BYFPR from Texas Instruments

The TPS22932BYFPR by Texas Instruments is a state-of-the-art load switch designed for power management applications. This advanced device offers a high level of integration and protection, making it an ideal solution for extending battery life and reducing power consumption in portable and battery-powered electronics.

Key Features

• Ultra-Low On-Resistance: The TPS22932BYFPR features an ultra-low on-resistance (R_ON) which significantly reduces power loss and improves efficiency.
• Input Voltage Range: This load switch operates over a wide input voltage range from 1.1V to 5.5V, accommodating a variety of power sources and systems.
• Quick Output Discharge: It includes an integrated quick output discharge transistor (QOD) that provides a rapid discharge of the output capacitance when the switch is turned off, which helps to prevent unwanted power consumption.
• Controlled Slew Rate: The device ensures a controlled slew rate for the turn-on and turn-off of the switch, minimizing inrush current and potential damage to sensitive components.

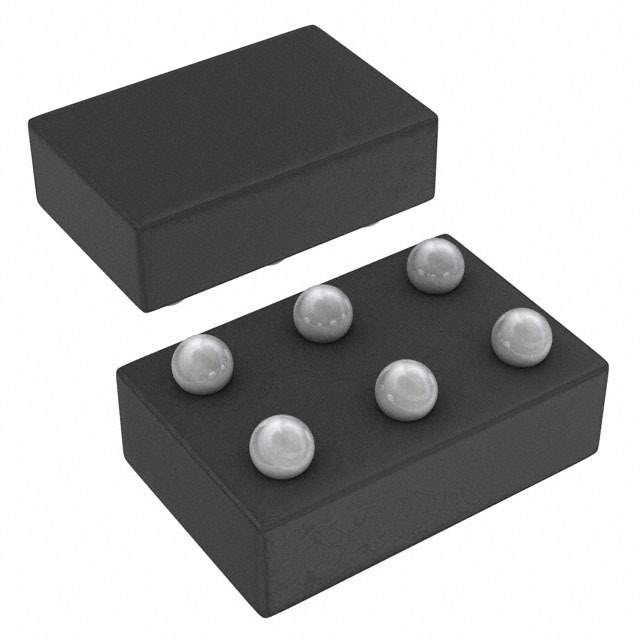

• Small Package Size: The TPS22932BYFPR comes in a compact 6-pin, 1.5mm x 1mm DSBGA package, making it suitable for space-constrained applications.

Protection Features

• Under-Voltage Lockout (UVLO): The UVLO feature ensures the switch remains off if the input voltage is below a certain threshold, protecting the device and the load.
• Over-Temperature Protection: An integrated thermal shutdown mechanism protects the switch from damage due to excessive heat.

Applications

The TPS22932BYFPR is suitable for a wide range of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wearable Devices
• Wireless Headsets and Earbuds
• IoT Devices
• Power Management Modules

Conclusion

With its advanced features and compact design, the TPS22932BYFPR from Texas Instruments is an excellent choice for designers looking to improve power efficiency and extend battery life in their products. Its robust protection features and wide input voltage range make it a versatile component for a variety of power-sensitive applications.
