Product Overview: TPS2226ADB from Texas Instruments

The TPS2226ADB is a high-performance, dual-slot PC Card power-interface switch crafted by the renowned semiconductor manufacturer, Texas Instruments. This advanced component is designed to facilitate the supply and management of power to PC Cards, including CardBus cards, in portable computers and other PC Card-equipped devices. It is an essential piece for any system that requires reliable power switching and distribution for PC Card slots.

The TPS2226ADB boasts a range of features that make it a versatile and efficient solution for power management. It provides two independent power distribution switches for 3.3V, 5V, and mixed voltage PC Cards. Each switch is capable of delivering up to 1A of continuous current, with peak current capabilities of 2A for short durations to accommodate the inrush current associated with card insertion.

One of the key attributes of the TPS2226ADB is its built-in short-circuit and thermal protection, which ensures safe operation under adverse conditions. The device automatically shuts down if it detects an over-current or over-temperature event, preventing potential damage to the PC Card and the power-management system. Furthermore, it features under-voltage lockout (UVLO) to ensure that the power switch remains off when the input voltage is too low, thus safeguarding the system's integrity.

The TPS2226ADB is designed with flexibility in mind, offering programmable current limits via an external set resistor. This allows designers to tailor the power management to suit specific system requirements. Additionally, the device includes a power-good output signal, which provides a status indication to the host system, ensuring that power is stable and available before enabling card operations.

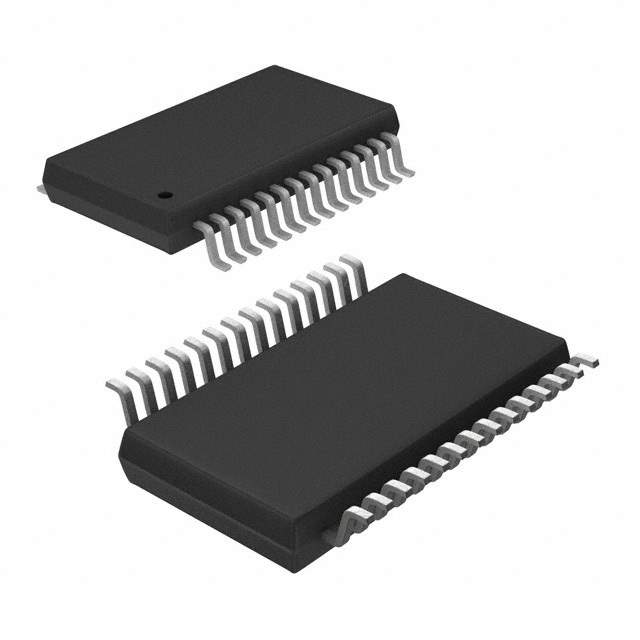

Encased in a compact 30-pin SSOP (Shrink Small Outline Package), the TPS2226ADB is optimized for space-constrained applications. Its small footprint and low-profile design make it an excellent choice for slim and portable devices.

In summary, the TPS2226ADB from Texas Instruments is a robust, feature-rich power-interface switch that offers reliable performance, comprehensive protection features, and design flexibility, making it an ideal choice for managing PC Card power in a wide range of applications.
