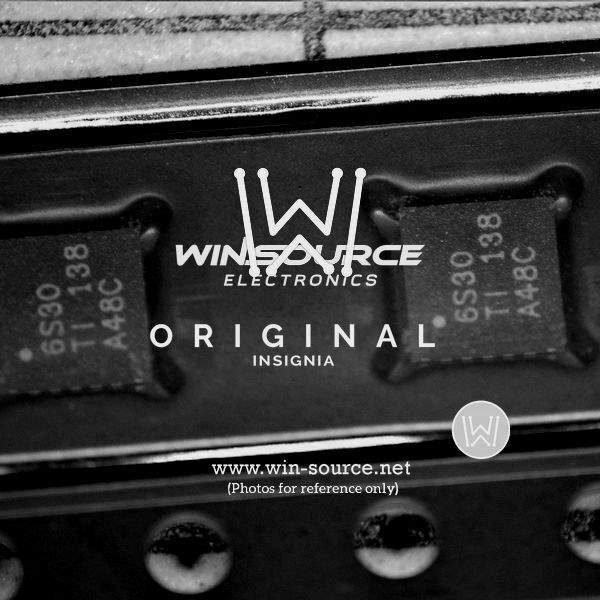

TPD6S300RUKR - USB Type-C and USB PD ESD Solution from Texas Instruments

The TPD6S300RUKR from Texas Instruments (TI) is a comprehensive protection solution designed specifically for the USB Type-C and USB Power Delivery (USB PD) interfaces. This advanced device integrates multiple protective features to shield sensitive electronics from various electrical threats, ensuring reliable operation and long-term durability of end products.

Key Features:

• Integrated Protection: The TPD6S300RUKR offers six channels of low-capacitance TVS (Transient Voltage Suppressor) ESD (Electrostatic Discharge) protection, safeguarding the CC1, CC2, SBU1, SBU2, D+, and D- lines, which are critical for the USB Type-C communication and signaling.
• Short-to-VBUS Overvoltage Protection: This device provides robust short-to-VBUS overvoltage protection on the CC and SBU lines, ensuring that the system is shielded from potential damage due to accidental shorts.
• Dead Battery Provision: It supports the USB Type-C dead battery provision, which allows devices to be powered from the USB port even when the device battery is completely discharged.
• Low RON Switches: The TPD6S300RUKR includes low RON switches for the SBU and CC lines that minimize power loss and help maintain signal integrity.
• Thermal Shutdown: An integrated thermal shutdown feature prevents overheating, adding an extra layer of protection.
• Compact Package: The device comes in a small, space-saving RUK package, making it ideal for portable applications where board space is at a premium.

Applications:

The TPD6S300RUKR is suitable for a wide range of applications that utilize USB Type-C and USB PD interfaces, including:

• Smartphones and Tablets
• Laptops and Ultrabooks
• Power Banks
• Docking Stations
• USB Chargers and Adapters

With its robust protection capabilities and support for the latest USB standards, the TPD6S300RUKR is an ideal choice for designers looking to enhance the safety and reliability of their USB Type-C and PD-enabled devices. Texas Instruments' commitment to quality ensures that this protection device meets the stringent requirements of modern electronic systems.
