Overview of Texas Instruments TPD3E001DRYR

The TPD3E001DRYR is a robust, versatile low-capacitance ESD protection device from Texas Instruments, designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This compact component is essential for maintaining the integrity and longevity of sensitive electronic circuits, making it an ideal choice for a wide range of applications.

Key Features

• Triple-Channel ESD Protection: The TPD3E001DRYR offers protection for up to three data or transmission lines, ensuring comprehensive defense against ESD strikes.
• Low Capacitance: With a typical capacitance of only 1.5 pF per channel, this device preserves signal integrity, making it suitable for high-speed interfaces without significant signal attenuation.
• IEC 61000-4-2 Compliance: The device meets the international standard for ESD immunity, providing ±8 kV contact and ±15 kV air-gap discharge protection, which safeguards against common ESD events.

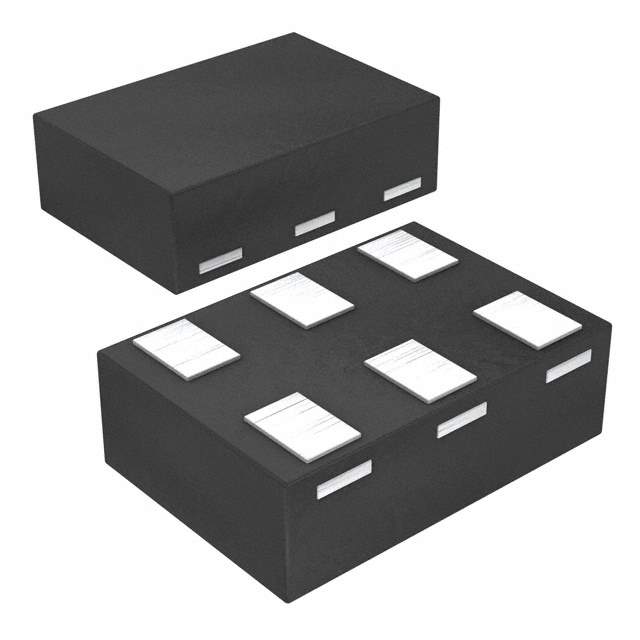

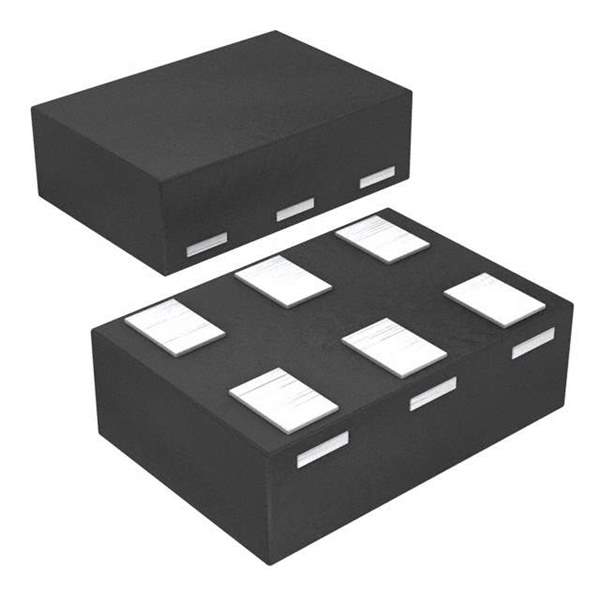

• Compact Footprint: Encased in a tiny 6-pin SOT (R-PDSO-G) package, the TPD3E001DRYR saves valuable board space, which is crucial for modern, densely packed electronic designs.
• Low Clamping Voltage: It offers a low clamping voltage during an ESD event, reducing the stress on the protected downstream circuitry.
• Wide Operating Range: The device operates over a broad temperature range, making it suitable for various environments and applications.

Applications

The TPD3E001DRYR is designed for use in a variety of applications where ESD protection is paramount. These include:

• USB interfaces
• Video lines
• High-speed data lines
• Portable electronics
• Telecommunications equipment

Conclusion

The Texas Instruments TPD3E001DRYR stands out as a high-performance ESD protection solution that combines efficiency with practicality. Its low-capacitance, multi-channel protection, and small form factor make it an excellent choice for designers looking to enhance the durability and reliability of their high-speed digital interfaces. By integrating this device into their designs, engineers can ensure that their products are well-protected against the damaging effects of ESD and other transient voltage events.
