TPD4S010DQAR

Part No TPD4S010DQAR
Manufacturer Texas Instruments
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 10SON
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 9V
Power Dissipation - Pd 25W
Power Line Protection Yes
Applications Ethernet, HDMI
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

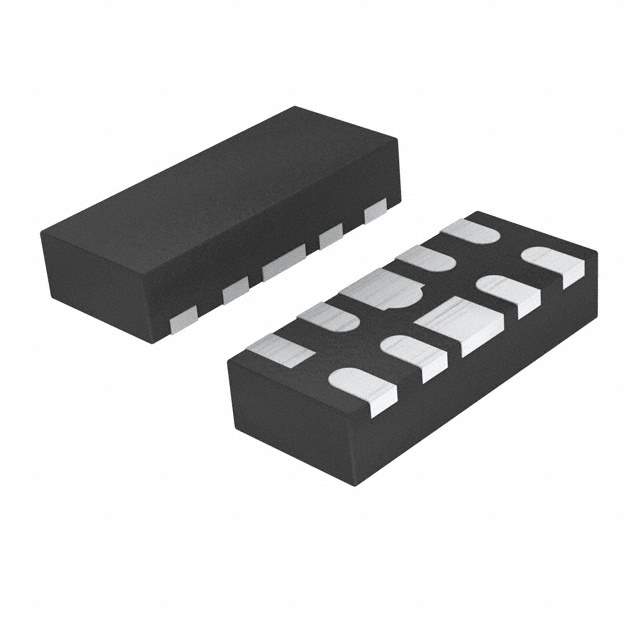

Case / Package 10-SON (2.5x1)
Win Source Part Number 033559-TPD4S010DQAR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TPD4S010DQAR CAD Model

Description

TPD4S010DQAR from Texas Instruments is a TVS diode device commonly used to help protect sensitive interface lines in compact electronic designs. Engineers typically consider parts in this category for guarding downstream ICs against transient events such as electrostatic discharge in consumer, industrial, and embedded systems. This makes it relevant for designs with exposed connectors, portable products, and signal paths where board-level protection is important for long-term reliability. Texas Instruments is widely specified in protection and interface ecosystems, so this part may fit designs that prioritize ecosystem familiarity and sourcing continuity. The current lifecycle status for TPD4S010DQAR is information not available, so design teams should confirm product status directly with Texas Instruments or authorized channels before locking it into new programs. RoHS compliance information is also not available in the provided data and should be verified through the manufacturer datasheet, compliance certificate, or distributor documentation before procurement.
