The TPD1S414YZR is a highly integrated protection solution from Texas Instruments, designed to safeguard sensitive electronic components from static discharge and overvoltage conditions. This single-channel transient voltage suppressor (TVS) diode array is specifically engineered to provide robust protection for portable devices such as smartphones, tablets, and other compact electronics.

Key Features

• Integrated Protection: The device incorporates both ESD protection and overvoltage protection (OVP) in a single, compact package, ensuring comprehensive safeguarding of critical circuits.
• Low Capacitance: With a low loading capacitance, the TPD1S414YZR is ideal for protecting high-speed data lines without compromising signal integrity.
• Wide Voltage Range: It supports a broad range of operating voltages, making it versatile for various applications.
• High ESD Rating: The device offers excellent ESD protection, withstanding electrostatic discharges in accordance with the IEC 61000-4-2 standard.
• Small Footprint: The tiny leadless package (YZR) is space-efficient, perfect for designs where PCB real estate is at a premium.

Applications

The TPD1S414YZR is suitable for a diverse array of applications where sensitive electronics require reliable protection. Common use cases include:

• USB interfaces
• Audio ports
• Portable consumer electronics
• Mobile handsets
• Power supply protection

Technical Specifications

The TPD1S414YZR boasts impressive technical specifications, including:

• 1 Channel of ESD protection
• Integrated overvoltage protection
• Low dynamic resistance

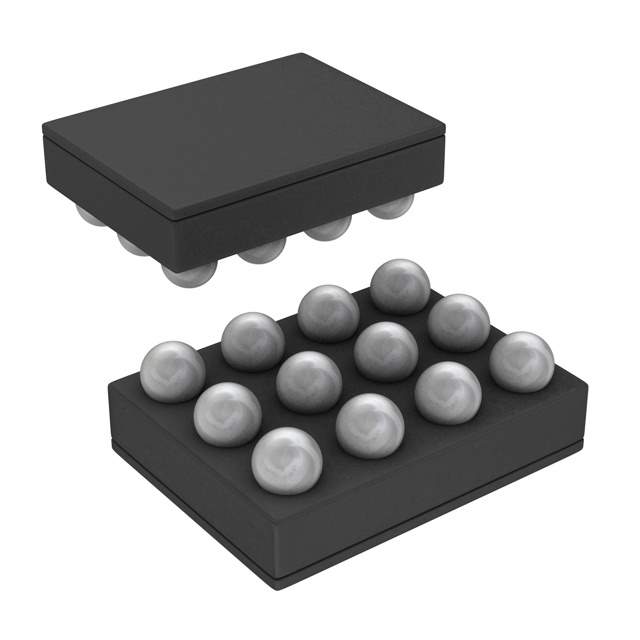

• Small 1.45mm x 1.00mm x 0.50mm DSBGA package
• Operating temperature range: -40°C to 85°C

With its advanced protection features, the TPD1S414YZR from Texas Instruments is a must-have for designers looking to enhance the durability and longevity of their electronic products.
