Texas Instruments INA186A5IDCKR Precision Current Sense Amplifier

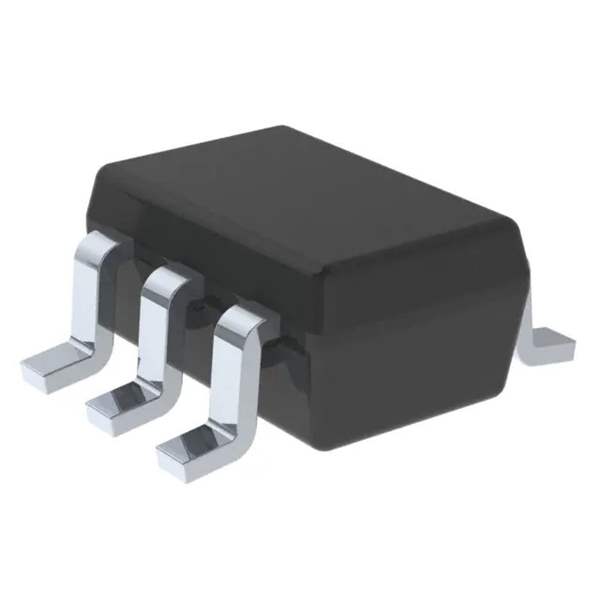

The INA186A5IDCKR is a high-precision current sense amplifier from Texas Instruments, designed to offer industry-leading performance for power management and control applications. This device is part of the INA186 family and is housed in a small SC70 package, making it suitable for space-constrained applications.

Featuring a common-mode voltage range from -0.2V to +26V, the INA186A5IDCKR is capable of monitoring shunt voltage drops across a wide range of system voltages. This makes it an extremely versatile component for various applications, including battery chargers, motor controls, overcurrent protection, and power management in consumer electronics, automotive, and industrial systems.

The INA186A5IDCKR offers a fixed gain of 500V/V, providing a precise amplification of the voltage across the current-sensing resistor. This high gain accuracy enables the device to deliver reliable measurements, which is critical for maintaining system efficiency and safety. Additionally, the amplifier boasts a low offset voltage of only 35 µV (max) and a zero-drift architecture, ensuring measurement accuracy over time, temperature, and the entire input common-mode voltage range.

With its low quiescent current of just 260 µA (typical), the INA186A5IDCKR is an energy-efficient solution that contributes to the extended battery life of portable devices. Moreover, the device's bandwidth of up to 350 kHz allows for fast signal response, which is essential for real-time current monitoring and control.

The INA186A5IDCKR also features an industry-standard pinout, which eases the design process and allows for straightforward integration into existing circuit layouts. The device is specified over the extended operating temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments.

Overall, the Texas Instruments INA186A5IDCKR is a robust, accurate, and versatile current sense amplifier that meets the stringent requirements of modern electronic systems, providing designers with a reliable tool for precision current measurement.
