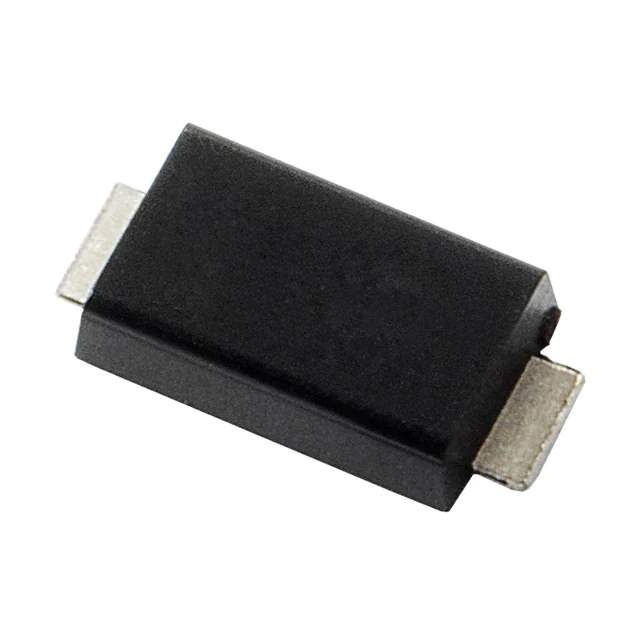

Same model may have multiple batches, images only for reference.

TPSMA6L24A

Name: TPSMA6L24A
Brand: Littelfuse Inc.
SKU: 850403
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPSMA6L24A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 24VWM 38.9VC DO221AC / 38.9V Clamp 15.5A Ipp Tvs Diode Surface Mount DO-221AC
Datasheet	TPSMA6L24A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101, TPSMA6L
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V
Voltage - Breakdown (Min)	26.7V
Voltage - Clamping (Max) @ Ipp	38.9V
Current - Peak Pulse (10/1000µs)	15.5A
Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	DO-221AC
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	850403-TPSMA6L24A
Ultra Librarian 3D Model	Ultra Librarian TPSMA6L24A CAD Model

Alternative Products

Description

The 850403-TPSMA6L24A is a TVS diode from the TPSMA6L series by Littelfuse Inc. It is designed for circuit protection against transient voltage spikes in automotive applications.

Type: Unidirectional zener diode
Reverse Standoff Voltage: 24V
Breakdown Voltage: 26.7V
Clamping Voltage (Max): 38.9V @ 15.5A (10/1000µs)
Peak Power Rating: 600W
Package: DO-221AC (SMA Flat Leads)
Package Size: 3,000 pcs
Operating Temperature: -50°C to 150°C
REACH: Unaffected
ECCN: EAR99
California Prop 65: Not affected
