The TMS320F28234PTPS is a high-performance digital signal processor (DSP) from Texas Instruments, designed to meet the rigorous demands of modern control applications. This powerful DSP is part of the TMS320C2000™ series, which is renowned for its robust architecture that combines the benefits of both microcontrollers (MCUs) and DSPs to deliver optimal performance in a single chip.

Key Features

• High-Performance Processing: With a 150 MHz CPU frequency, the TMS320F28234PTPS offers fast and efficient processing capabilities, making it ideal for time-critical applications such as motor control, power conversion, and renewable energy systems.
• Integrated Peripherals: This DSP comes with a range of integrated peripherals including 12-bit analog-to-digital converters (ADCs), PWM outputs, and capture inputs, which facilitate direct interfacing with sensors, actuators, and other electronic components.
• Advanced Control: Featuring innovative control peripherals like high-resolution PWMs and event managers, the TMS320F28234PTPS is equipped to handle complex control algorithms with precision.
• Memory and Storage: It includes 256KB of on-chip Flash memory and 34KB of RAM, providing ample space for code and data storage, ensuring smooth and reliable operation.
• JTAG Interface: The JTAG interface supports enhanced debug capabilities, simplifying the development and troubleshooting process for engineers.

Applications

The TMS320F28234PTPS is designed for a wide range of industrial applications, including:

• Industrial Motor Drives
• Power Inverters and Converters
• Renewable Energy Systems (Solar Inverters, Wind Turbines)
• Automotive Control Systems
• Intelligent Sensing and Monitoring

Package and Quality

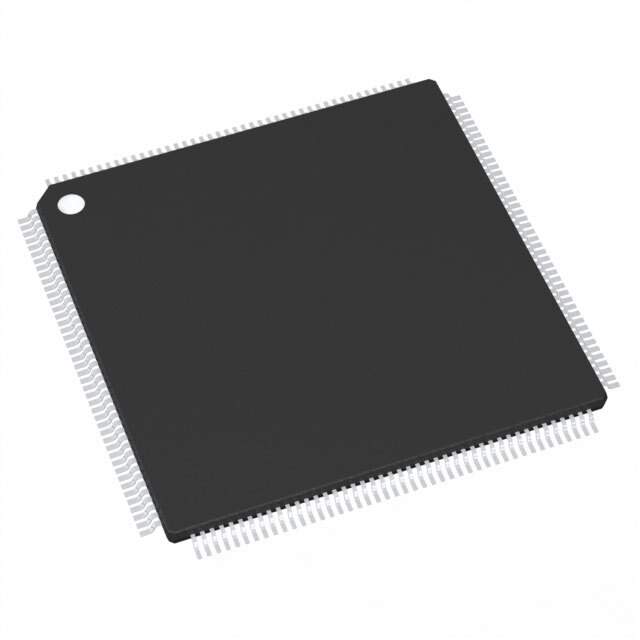

Encased in a 176-pin LQFP (Low Profile Quad Flat Package), the TMS320F28234PTPS offers a compact footprint while ensuring robustness and reliability. Texas Instruments' commitment to quality means that this DSP is manufactured to the highest standards, ensuring performance and longevity for mission-critical industrial applications.

With its powerful processing capabilities, versatile peripherals, and robust design, the TMS320F28234PTPS from Texas Instruments stands as a top-tier solution for engineers looking to develop advanced control systems with high reliability and performance.
