Texas Instruments TMS320C6747DZKBA3 Digital Signal Processor

The TMS320C6747DZKBA3 is a high-performance digital signal processor (DSP) from Texas Instruments (TI), designed for applications that demand efficient, high-speed digital signal processing capabilities. This powerful DSP is part of TI's TMS320C674x DSP family, which is well-known for its blend of fixed and floating-point capabilities, making it suitable for a wide range of applications including audio, industrial, medical, and communications.

The TMS320C6747DZKBA3 features a core that operates at a frequency of up to 300 MHz, providing up to 2400 MIPS (Million Instructions Per Second). This performance level makes it an ideal choice for applications requiring intensive signal processing tasks such as audio processing, image and video analytics, and sophisticated control algorithms.

With its 32-bit fixed-point and 64-bit floating-point precision, the TMS320C6747DZKBA3 ensures accuracy and dynamic range in computation-intensive applications. The DSP is equipped with a rich set of peripherals, including a high-speed USB 2.0 interface, an ATA/ATAPI interface, a memory interface for DDR2 and mDDR, and an enhanced direct memory access (EDMA) controller for efficient data movement.

One of the key features of the TMS320C6747DZKBA3 is its integrated memory. The device comes with 64KB of L1 RAM, 256KB of L2 RAM, and an additional 128KB of on-chip ROM. This integrated memory architecture helps to reduce system costs and improve performance by minimizing external memory accesses.

Developers can take advantage of the robust software development tools provided by Texas Instruments, including the Code Composer Studio integrated development environment (IDE) and a comprehensive suite of software libraries. These tools facilitate rapid development and debugging, allowing engineers to bring their products to market faster.

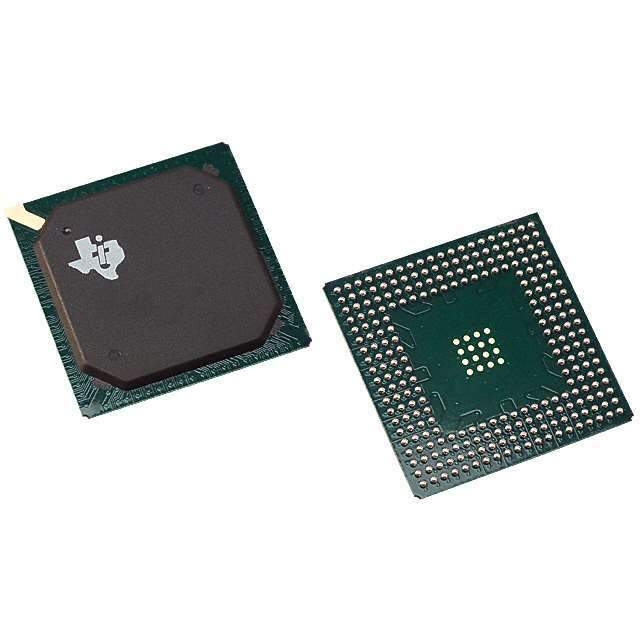

The TMS320C6747DZKBA3 is housed in a 256-ball MicroStar BGA package, providing a compact footprint for space-constrained applications. Its low-power consumption also makes it an excellent choice for portable and battery-powered devices, where power efficiency is crucial.

In summary, the TMS320C6747DZKBA3 from Texas Instruments is a versatile and powerful DSP that combines high processing power, precision, and a rich set of features, making it an optimal solution for a variety of demanding signal processing applications.
