Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Number of Channels 2, DUART
FIFO's 64 Byte
Data Rate (Max) 3Mbps
Supply Voltage - Operating 2.7 V to 3.6 V
With Auto Flow Control Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 48-LQFP (7x7)
Win Source Part Number 054771-TL16C752BPT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TL16C752BPT CAD Model

Description

The TL16C752BPT is a high-performance dual Universal Asynchronous Receiver/Transmitter (UART) from Texas Instruments, integrating two independent UART channels onto a single chip. Designed for applications that require multiple serial interfaces, this device is ideal for industrial, automotive, and consumer markets where reliable data communication is crucial.

Key Features

  • High Data Throughput: Each UART channel is capable of handling baud rates up to 3 Mbps, enabling fast data transmission for time-sensitive applications.
  • 64-Byte FIFO Buffers: Large FIFOs on transmit and receive lines reduce CPU overhead and improve system efficiency, especially at higher baud rates.
  • Programmable Hardware Flow Control: With support for RTS/CTS and XON/XOFF, the TL16C752BPT can manage data flow effectively, preventing data loss during high-speed communication.
  • Auto-Baud Detection: The device can automatically determine the baud rate of the incoming data stream, simplifying system design and enhancing compatibility.
  • Flexible Operational Modes: The dual UART can operate in 16450, 16550, or 16650 modes, providing versatility and backward compatibility with legacy systems.
  • Low Power Consumption: Enhanced power management features ensure minimal power usage in both active and idle states, making it suitable for battery-operated devices.

Applications

This versatile communication IC is widely used across various applications, such as:

  • Point of Sale (POS) terminals
  • Industrial control systems
  • Factory automation
  • Automotive diagnostics and infotainment systems
  • Networking equipment
  • Telecommunication infrastructure

Package and Quality

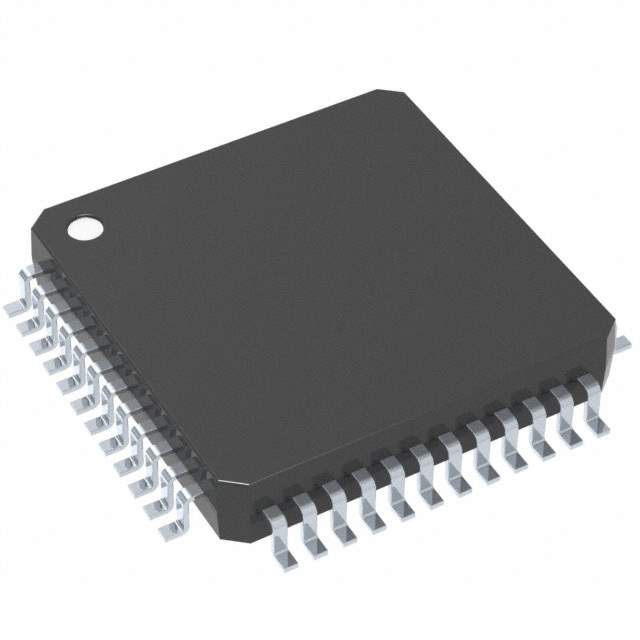

The TL16C752BPT is available in a 48-pin LQFP (Low-Profile Quad Flat Package) that offers a compact footprint while ensuring ease of integration into system designs. Texas Instruments ensures high manufacturing standards, providing a reliable and robust component suitable for demanding environments.

With its advanced features and proven performance, the TL16C752BPT from Texas Instruments stands out as a superior choice for designers looking to implement efficient serial communication in their products.
